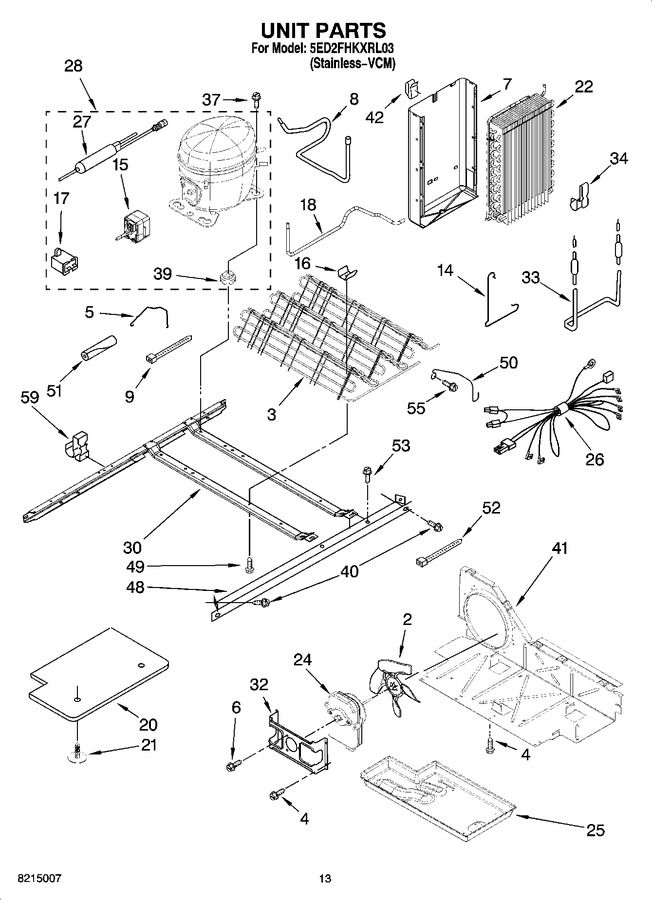

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
3	2324712		Condenser Assembly   (Replaces: 2304902)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2302129		Strap, Bale		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	2304288		Heat Shield		Appelez-nous	-
8	2205764		Tube Suction				$ 84.93
9	WP2205813		Wire Tie   (Replaces: 2205813)				$ 7.72
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	2302128		Start-device, Combination (start Relay And Overload) For Production & Srvc Compressor		Appelez-nous	-
16	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
17	2321245		Capacitor   (Replaces: 2254217)		Appelez-nous	-
18	2261599		Tube, Condenser To Heat Loop				$ 232.07
20	2304900		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 10.72
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
24	WP2321271		Motor, Fan   (Replaces: 2188879)				$ 309.96
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2187931		Harness, Unit		Appelez-nous	-
27	W10843121		Drier (production)   (Replaces: 2319825)			Immediately	$ 52.57
27	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
28	W10183407		Compressor (includes Items 12, 13, 15, 17, 27 & 39)   (Replaces: 2187162)				$ 414.86
30	2304903		Unit Mounting Frame				$ 233.03
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
33	WP2313330		Heater, Defrost   (Replaces: 2313330)				$ 155.36
34	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.42
39	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
42	2155547		Clip, Heat		Appelez-nous	-
48	2149718		Unit Mounting Rail		Appelez-nous	-
49	W11544659		Screw   (Replaces: 8281232)				$ 13.67
50	1105612		Guard, Fan				$ 40.58
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
52	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
55	WP489478		Screw   (Replaces: 489478)				$ 7.75
59	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
59	2208280		Clip, Wire & Tube		Appelez-nous	-
59	978026		Valve, Access (5/16``)			Immediately	$ 128.09
59	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
59	978028		Valve, Access (1/2)		Appelez-nous	-
59	978029		Valve Access (5/8``)				$ 93.85
59	978030		Valve, Access (3/4``)				$ 130.71
59	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 89.66
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	799340		Paint, Bulk (1qt.) (black)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)				$ 57.04
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WPW10190943		3eckmf-87   (Replaces: 1129317)				$ 378.13
	833938		Kit, Terminal Connector				$ 8.07
