SELECT A DIAGRAM

01 - Top And Cabinet Parts

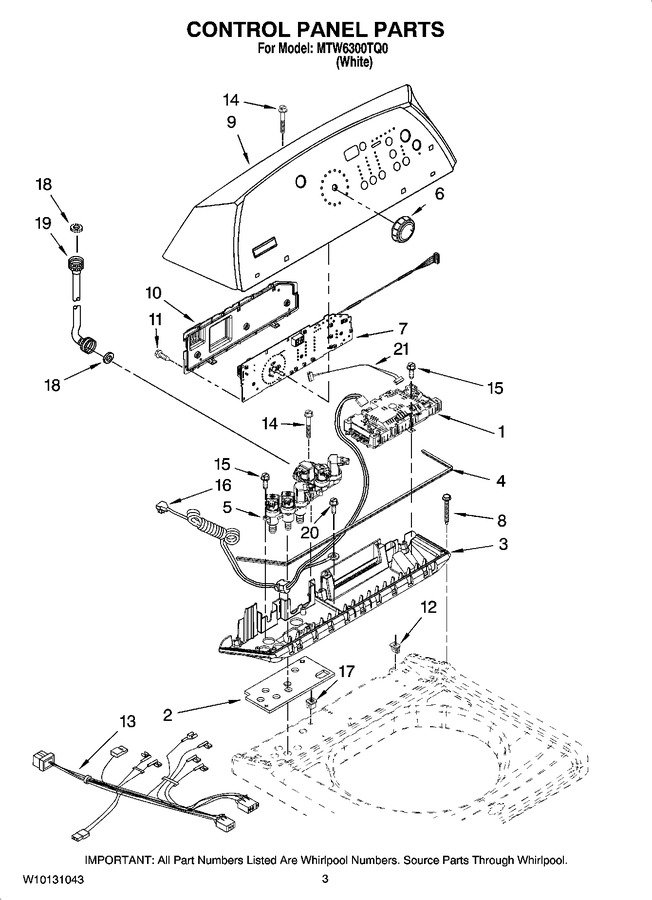

02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10112113		Control Unit Assembly, Machine & Motor		Appelez-nous	-
2	8565260		Gasket, Valve Tray		Appelez-nous	-
3	8565304		Tray Assembly, Console (includes Items 2 & 4)				$ 99.34
4	8565259		Gasket, Console/tray		Appelez-nous	-
5	W10059310		Valve, Log Assembly				$ 124.24
6	W10110196		Knob, Control				$ 46.56
7	W10051091		User Interface		Appelez-nous	-
8	W10004990		Screw, 6-20 X 1.2		Appelez-nous	-
9	W10090707		Console		Appelez-nous	-
10	8564265		Cover, Rear- User Interface				$ 142.60
11	WP4449745		Screw, 6-19 X 1/2 (3)   (Replaces: W10003770)				$ 7.98
12	W10022060		Nut, Push-in (3)		Appelez-nous	-
13	W10045090		Harness, Upper		Appelez-nous	-
14	8565324		Screw, 10-16 X 1.75				$ 14.05
15	WP8281136		Screw, 8-18 X 3/4   (Replaces: 8281136)				$ 7.30
16	3407203		Cord Assembly, Power				$ 59.22
17	98460		Nut, Push-in (2)				$ 12.07
18	WP16123		Washer, Water Inlet Hose (1-1/16 X 5/8)(4)   (Replaces: 3976300)				$ 8.16
19	WP89503		Hose, Water Inlet (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
19	WP89503		Hose, Water Inlet (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
20	WPW10141625		Screw, Power Cord Ground   (Replaces: 488649)				$ 22.22
21	3407187		Harness, Thermistor				$ 135.40
