01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts

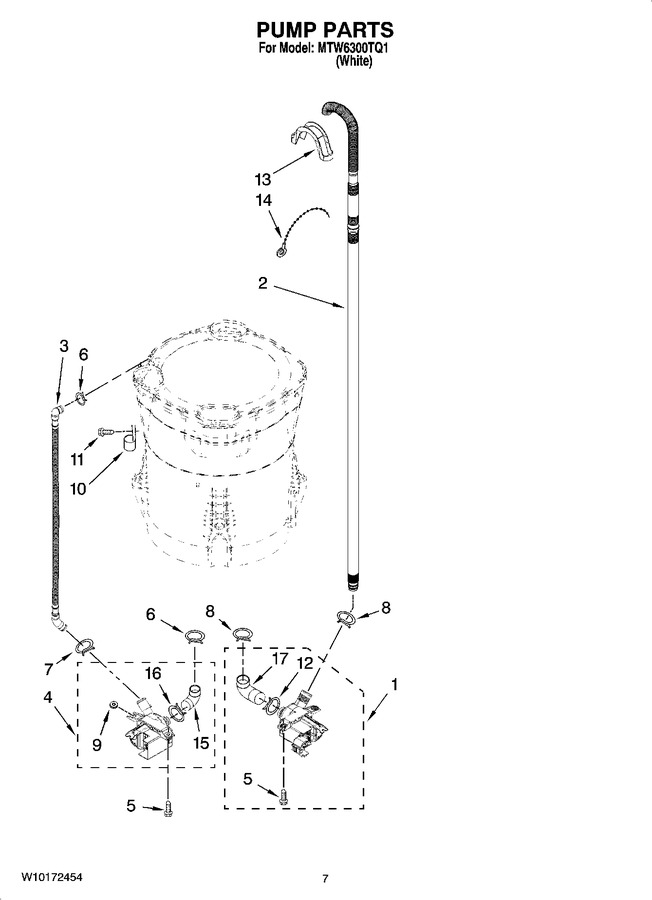

04 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10536347		Pump Assembly, Drain   (Replaces: W10155921)			Immediately	$ 141.69
2	WPW10363893		Hose, Drain   (Replaces: W10128765)				$ 62.69
3	WP8543774		Hose, Recirc   (Replaces: 8543774)				$ 75.41
4	W10049400		Pump Assembly, Recirc		Appelez-nous	-
5	WPW10004910		Screw, 12-16 X 1.125   (Replaces: W10004910)				$ 7.95
6	WP285655		Clamp, Hose   (Replaces: 370449)			Immediately	$ 8.39
7	WP8269146		Clamp, Hose   (Replaces: 8269146)				$ 8.12
8	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
9	8182771		Grommet, Pump Mounting (4)		Appelez-nous	-
10	8534021		Clamp, Recirc Hose Retainer				$ 8.43
11	WPW10109200		Screw, 10-16 X 3/4   (Replaces: 8533943)			Immediately	$ 8.00
12	WP285655		Clamp, Drain Pump Hose   (Replaces: 8182768)			Immediately	$ 8.39
13	WP8576642		Retainer, Drain Hose   (Replaces: 8576642)				$ 93.52
14	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
15	WP8182769		Hose, Recirc Pump   (Replaces: 8182769)				$ 39.19
16	WP3367052		Clamp, Recirc Pump Hose   (Replaces: 8182770)				$ 8.32
17	WP8182767		Hose, Drain Pump   (Replaces: 8182767)				$ 25.11
NI	W10135699		Affresh Odor Remover			Immediately	$ 20.92
NI	WP285195		Sealer, Gasket (.20 Fl. Oz.) (6 Ml)   (Replaces: 285195)			Immediately	$ 104.39
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 38.21
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	285442		Connector Kit, Plastic Drain Hose				$ 94.02
NI	285321		Sleeve Kit, (contains 2 Sleeves)				$ 83.91
NI	76660		Siphon Break Kit   (Replaces: 285320)			Immediately	$ 133.25
NI	367031		Drain Protector		Appelez-nous	-
NI	WP384496		Coupling, Hose   (Replaces: 384496)				$ 86.09

    View Diagram in Separate Window       Print Part List
