SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Control Panel Parts

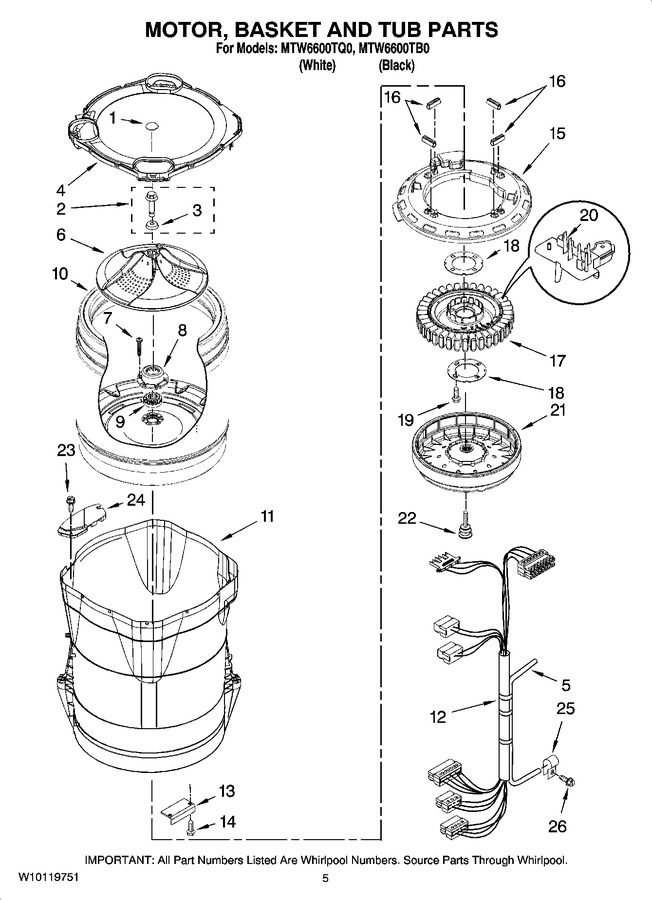

03 - Motor, Basket And Tub Parts


04 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10106600		Cap, Impeller				$ 20.02
2	W10076270		Screw & Washer Assembly				$ 5.83
3	WPW10076260		Washer   (Replaces: W10076260)				$ 11.88
4	WPW10130807		Tub Ring   (Replaces: W10108430)				$ 208.13
5	WP353244		Hose Pressure Switch   (Replaces: 8572540)			Immediately	$ 59.93
6	W11252784		Impeller (washplate)   (Replaces: W10076230)				$ 278.71
7	WP8533953		Screw, 8-16 X 1.000 (6)   (Replaces: 8533953)			Immediately	$ 7.55
8	W10820039		Hub, Basket-driven (includes Item 9)   (Replaces: W10118114)			Immediately	$ 36.28
9	W10820039		Hub, Basket-driver (includes Item 8)   (Replaces: 8545953)			Immediately	$ 36.28
10	W10118182		Basket Assembly (includes Items 7, 8, & 9)		Appelez-nous	-
11	W10193886		Tub & Drive Shaft Assembly   (Replaces: 8572660)				$ 763.01
12	W10058730		Harness, Lower (includes Item 5)		Appelez-nous	-
13	8542674		Weight, Tub Counterbalance		Appelez-nous	-
14	WPW10004910		Screw, 12-16 X 1-1/4 (2)   (Replaces: W10004910)				$ 8.39
15	8557839		Shield, Drive Motor (includes Item 16)		Appelez-nous	-
16	8565172		Tube, Buffer (set Of 4)		Appelez-nous	-
17	WPW10419333		Stator, Motor (includes Item 18)   (Replaces: 8565170)			Immediately	$ 349.42
18	WP8557836		Plate, Stator (set Of 2)   (Replaces: 8557836)			Immediately	$ 110.55
19	W10076010		Screw, 1/4-20 X .968 (4)		Appelez-nous	-
20	8565188		Rps Assembly		Appelez-nous	-
21	280146		Rotor, Main Drive Motor (includes Item 22)   (Replaces: 8565177)			Immediately	$ 343.68
23	WP8533928		Screw, 8-18 X 3/4 (2)   (Replaces: 8533928)			Immediately	$ 8.26
24	8566197		Filter, Dual Pump Hood		Appelez-nous	-
25	W10005430		Clamp, Pressure Hose Retainer			Immediately	$ 9.53
26	8533957		Screw, 10-16 X 1/2				$ 12.60
