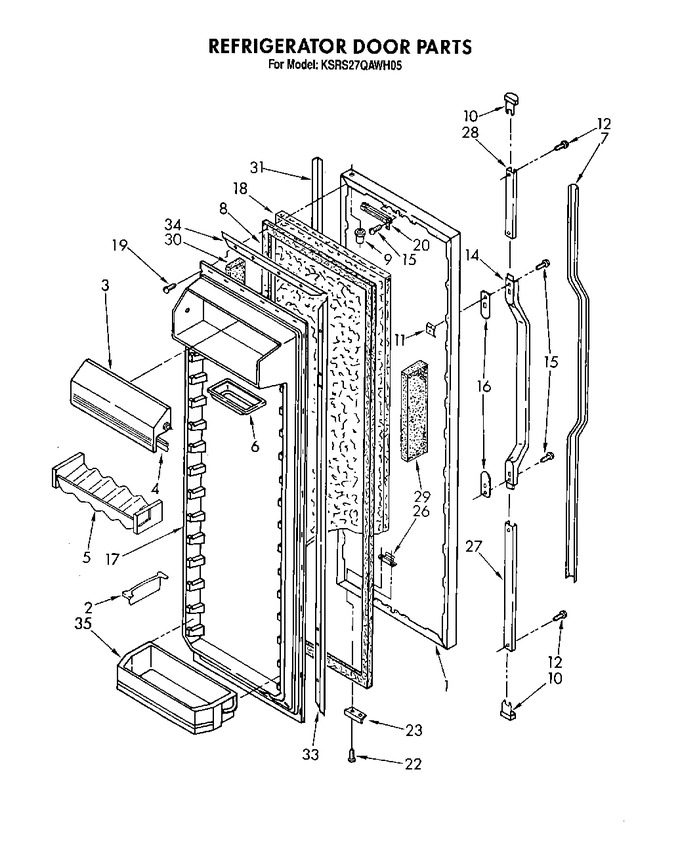

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1117878		Refrigerator Door (white)		Appelez-nous	-
1	1117882		Refrigerator Door (almond (also Order Item 18))		Appelez-nous	-
2	2161564		Load Lock		Appelez-nous	-
3	1125733		Door, Compartment		Appelez-nous	-
4	1125695		Gasket, Utility Door		Appelez-nous	-
5	1125981		Holder, Beverage		Appelez-nous	-
6	1125936		Butter, Tray		Appelez-nous	-
7	1117948		Insert, Handle (white)		Appelez-nous	-
7	1117949		Insert, Handle (almond)		Appelez-nous	-
8	1125929		Door Gasket, Magnetic		Appelez-nous	-
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1107341		End Cap, Handle		Appelez-nous	-
11	941242		Screw Anchor (2)		Appelez-nous	-
12	489075		Screw (2)		Appelez-nous	-
14	1107215		Handle Assembly		Appelez-nous	-
15	WPW10141645		Screw, 8 X 1/2 (4)   (Replaces: 489084)				$ 8.05
16	1107651		Spacer, Handle		Appelez-nous	-
17	1117906		Panel, Interior Door		Appelez-nous	-
18	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
19	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
19	WP489069		Screw, 7 X 1/2 (30)   (Replaces: 489101)			Immediately	$ 8.40
20	1117898		Door Closer, Upper Cam		Appelez-nous	-
22	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
23	2157609		Bracket, Door Stop (black)		Appelez-nous	-
23	2157611		Bracket, Door Stop (chrome)		Appelez-nous	-
26	1123568		Tap Plate		Appelez-nous	-
27	1117952		Retainer, Insert (bottom)		Appelez-nous	-
28	1107243		Retainer, Insert		Appelez-nous	-
29	1126151		Dike, Door Handle Side		Appelez-nous	-
30	1126152		Dike, Door Hinge Side		Appelez-nous	-
31	1119062		Trim, Door		Appelez-nous	-
33	1118302		Gasket Retainer, Side (2)		Appelez-nous	-
34	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
35	4318417		Black Grille Kit		Appelez-nous	-
35	1126069		Shelf Bin (4)		Appelez-nous	-
35	4318526		Trim Kit Trim Kit Panels		Appelez-nous	-
35	4211148		White		Appelez-nous	-
35	4211147		Almond		Appelez-nous	-
35	4210348		Black Handle Inserts		Appelez-nous	-
35	4318339		Handle Inserts (black)		Appelez-nous	-
35	4318340		Woodgrain		Appelez-nous	-
