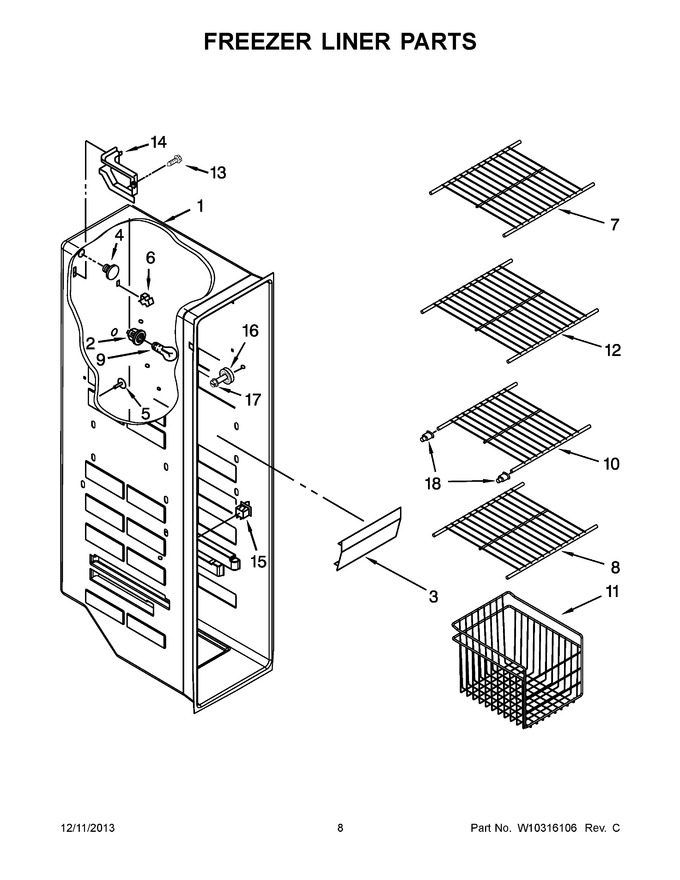

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 13.87
3	2171705		Lens, Light				$ 94.68
4	2223173		Plug, Fill Tube				$ 9.24
5	WP941839		Plug, Hole (white)   (Replaces: 941839)				$ 8.03
6	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
7	W10318945		Shelf, Wire   (Replaces: W10276748)				$ 103.20
8	W10276759		Shelf, Wire		Appelez-nous	-
9	WP67002552		Bulb, Light   (Replaces: 851682)			Immediately	$ 12.34
10	WPW10318947		Shelf, Wire   (Replaces: W10276761)				$ 91.81
11	2312035		Bin, Freezer		Appelez-nous	-
12	WPW10318948		Shelf, Wire   (Replaces: W10276762)				$ 155.23
13	WP489478		Screw   (Replaces: 489478)				$ 8.18
14	2160912		Cover, Wiring		Appelez-nous	-
15	2321286		Switch, Rocker Arm		Appelez-nous	-
16	W11527119		Assembly, Shelf Stud   (Replaces: W10173127)		Appelez-nous	-
17	W10191952		Screw				$ 5.65
18	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 14.70
