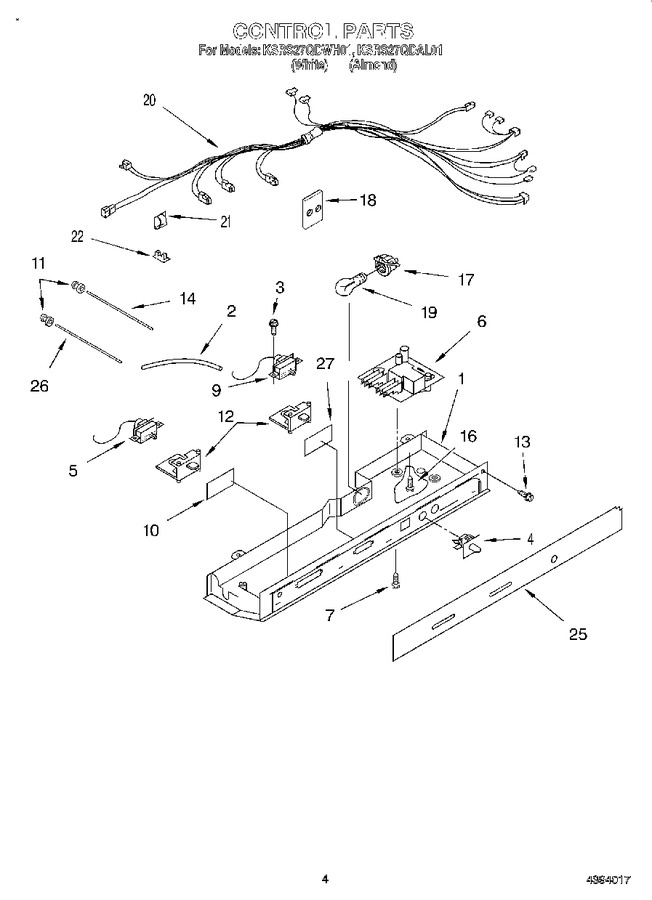

03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Air Flow, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172930		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 2172948)				$ 8.35
3	2006254		Screw (3)   (Replaces: 489214)				$ 13.79
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	WP2182770		Thermostat (fc)   (Replaces: 2161461)			Immediately	$ 237.62
6	4388932		Adaptive Defrost Control   (Replaces: 2169267)			Immediately	$ 280.44
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
9	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 261.10
10	2172940		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 22.28
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 8.05
14	2179920		Light Bar (rc)				$ 37.08
16	WP488488		Screw (2)   (Replaces: 489290)				$ 8.52
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
18	2172931		Heat Shield				$ 73.90
19	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
20	2172953		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
22	1115375		Clip, Wiring				$ 11.15
25	2161486		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-
