Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2194236B Refrigerator Door (includes No.7) Appelez-nous -
2 2195497 Load Lock Appelez-nous -
3 2182399 Door, Compartment Appelez-nous -
4 2193409 Beverage Holder Special Order $ 48.13

5 2165792 Tray, Butter Appelez-nous -
6 2173829 Insert, Handle Appelez-nous -
7 2159083 Door Gasket, Magnetic (service) Special Order $ 251.49

8 2194778B End Cap, Handle Appelez-nous -
9 489075 Screw Appelez-nous -
10 2194777B Retainer, Insert Appelez-nous -
11 WP489463 Screw   (Replaces: 489463) Special Order $ 8.25

12 4318165 Door Closer, Upper Cam   (Replaces: 2182132) In-Stock Immediately $ 29.74

13 2159124 Gasket Appelez-nous -
14 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

15 2155331 Bracket, Door Stop Appelez-nous -
16 2171062 Shelf Bin (4) Special Order $ 40.08

17 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26


    View Diagram in Separate Window     Print Icon   Print Part List

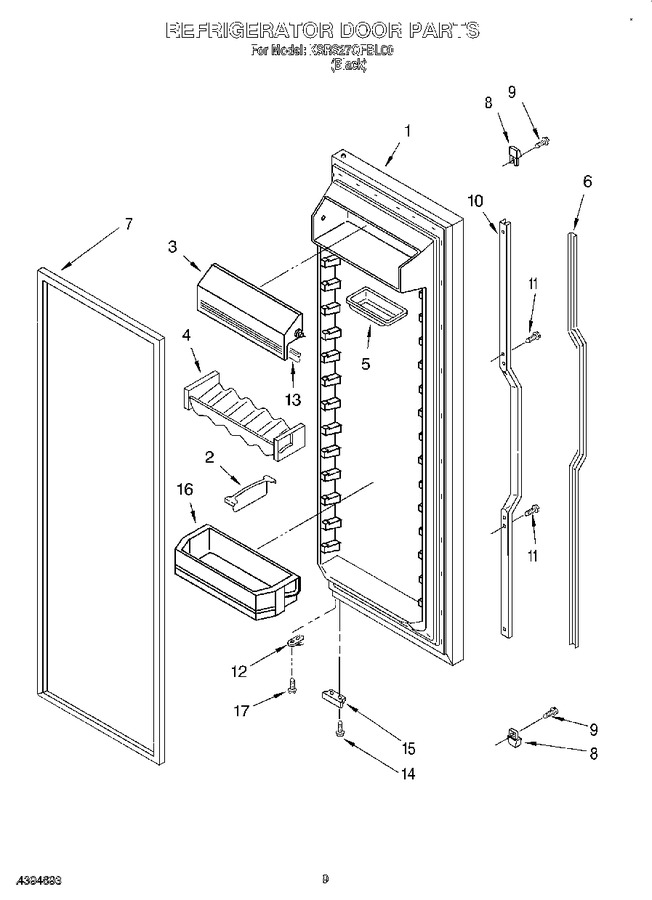

Diagram for KSRS27QFBL00
