Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Refrigerator Shelf Parts
03 - Refrigerator Shelf Parts

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Air Flow Parts
05 - Air Flow Parts

Diagram for 06 - Refrigerator Door Parts
06 - Refrigerator Door Parts

Diagram for 07 - Freezer Door Parts
07 - Freezer Door Parts

Diagram for 08 - Unit Parts
08 - Unit Parts

Diagram for 09 - Control Parts
09 - Control Parts

No Diagram Image Available
10 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 W11447232 Socket, Light   (Replaces: W10134764) In-Stock Immediately $ 13.21

3 2171705 Light Lens Special Order $ 94.68

4 2223173 Plug, Fill Tube Special Order $ 8.80

5 WP941839 Hole, Plug   (Replaces: 941839) Special Order $ 7.65

6 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.42

7 W10318945 Shelf, Wire   (Replaces: 2309521) Special Order $ 98.29

8 2309522 Shelf, Wire (2) Appelez-nous -
9 WP67002552 Light Bulb   (Replaces: 851682) In-Stock Immediately $ 11.75

10 WPW10318947 Shelf   (Replaces: 2309596) Special Order $ 87.44

11 2312035 Freezer Bin Appelez-nous -
12 WPW10318948 Shelf, Wire   (Replaces: 2309597) Special Order $ 147.84

13 WP489478 Screw   (Replaces: 489478) Special Order $ 7.75

14 2160912 Wiring Cover Appelez-nous -
15 2321286 Switch, Rocker Arm Appelez-nous -
16 WP2196483 Stud Assembly   (Replaces: 2196483) Special Order $ 10.35

17 WP3400806 Screw   (Replaces: 8281158) Special Order $ 7.71

18 WPW10130299 Cup, Shelf Mount.   (Replaces: W10130299) In-Stock Immediately $ 14.00


    View Diagram in Separate Window     Print Icon   Print Part List

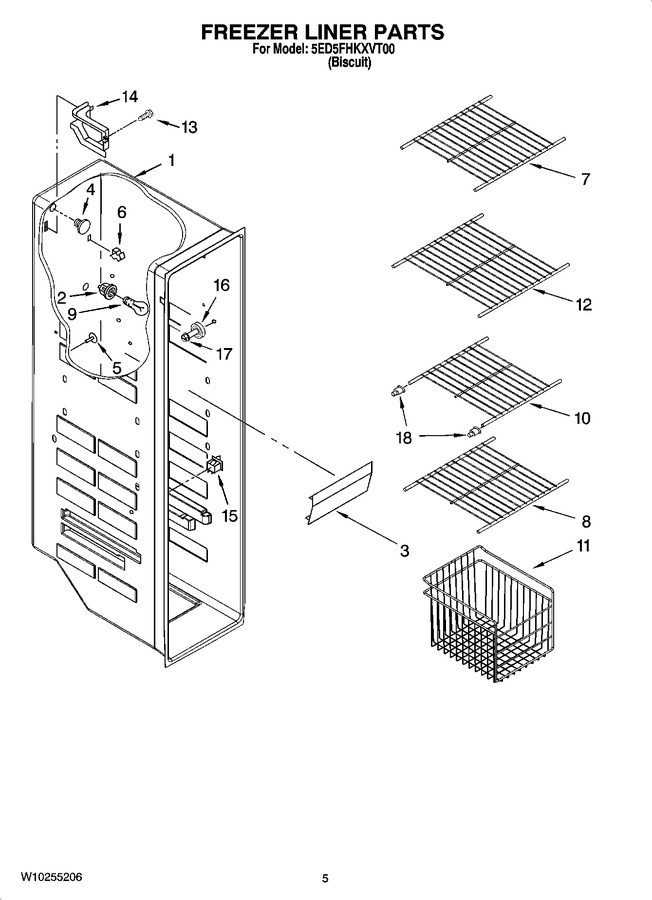

Diagram for 5ED5FHKXVT00
