SELECT A DIAGRAM

01 - Cabinet Assy


02 - Cavity Assy


03 - Door Assy


04 - Panel Assy

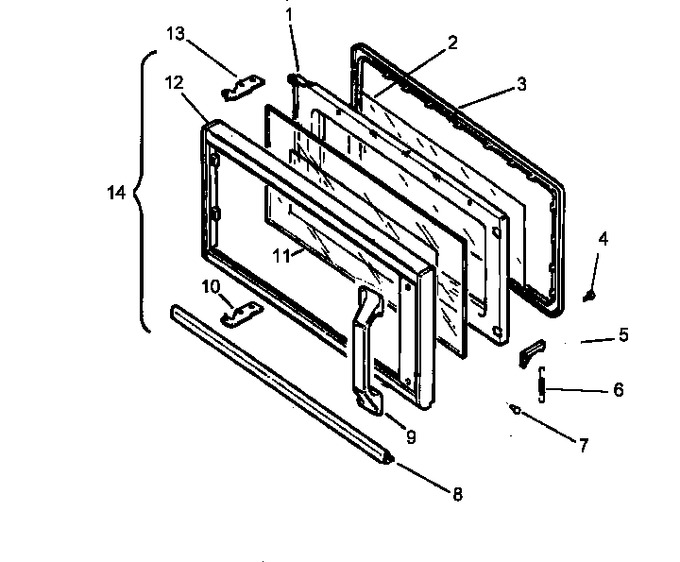

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0713563		Door Liner &choke-blk		Appelez-nous	-
2	R0713565		Film Door		Appelez-nous	-
3	R0713564		Inner Door Frame		Appelez-nous	-
4	R0713569		Screw, Tapping		Appelez-nous	-
5	R0713566		Latch, Door 2		Appelez-nous	-
6	R0713567		Spring, Latch Door		Appelez-nous	-
7	R0713570		Pin, Latch Door		Appelez-nous	-
8	R0713573		Trim, Door Lower		Appelez-nous	-
9	R0713562		Assy, Handle-blk		Appelez-nous	-
10	R0713519		Hinge, Lower		Appelez-nous	-
11	R0713571		Outer Glass, Door-blk		Appelez-nous	-
12	R0713572		Outer Door Frame		Appelez-nous	-
13	R0713568		Hinge, Upper		Appelez-nous	-
14	R0713561		Assy, Door-blk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
