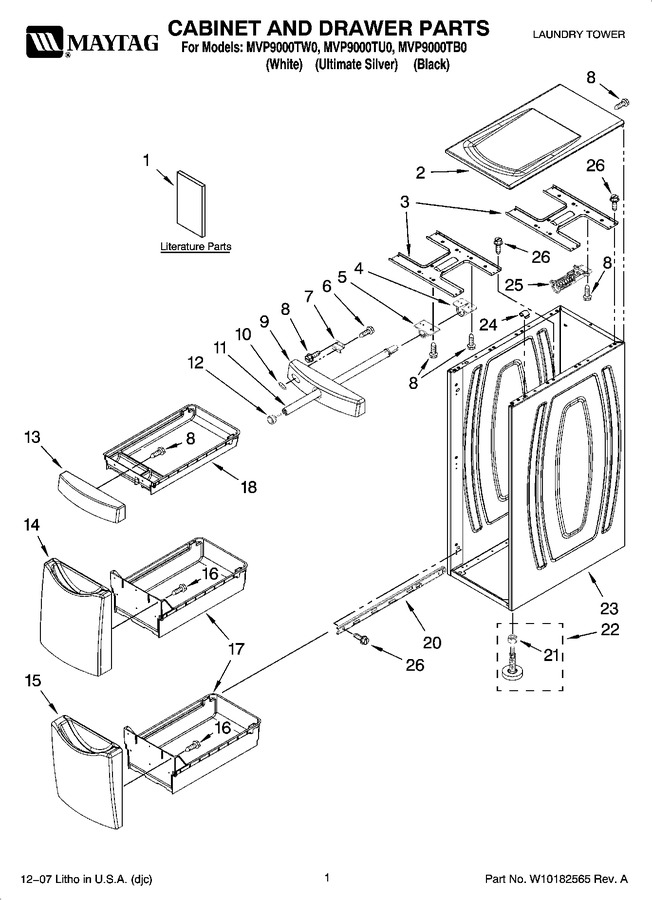

01 - Cabinet And Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10101295 | Guide, Use & Care |
|
- | |||||
| 2 | W10064060 | Top (ultimate Silver) |
|
- | |||||
| 2 | W10011320 | Top (white) |
|
- | |||||
| 2 | W10064030 | Top (black) |
|
- | |||||
| 3 | W10070580 | Bracket, Top Support |
|
- | |||||
| 4 | W10101183 | Bushing Sleeve Rear, Stop |
|
- | |||||
| 5 | W10101184 | Bushing Sleeve Front |
|
- | |||||
| 6 | W11661574 | Screw, 10-16 X 1/2 (Replaces: 489473) |
|
$ 14.29 | |||||
| 7 | W10011880 | Bracket, Pogo Front (2) |
|
- | |||||
| 8 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 9 | W10101267 | Front, Pogo (includes Illus. 10) (black) |
|
- | |||||
| 9 | W10101266 | Front, Pogo (includes Illus. 10) (white) |
|
- | |||||
| 9 | W10101268 | Front, Pogo (includes Illus. 10) (ultimate Silver) |
|
- | |||||
| 10 | W10101253 | Medallion |
|
- | |||||
| 11 | W10011750 | Pogo Bar Assembly |
|
- | |||||
| 12 | W10011740 | End Cap, Pogo Bar |
|
$ 33.98 | |||||
| 13 | W10103150 | Front, Organizer Drawer (black) |
|
- | |||||
| 13 | W10103180 | Front, Organizer Drawer (ultimate Silver) |
|
- | |||||
| 13 | W10011490 | Front, Organizer Drawer (white) |
|
- | |||||
| 14 | W10070270 | Front, Middle Drawer (ultimate Silver) |
|
- | |||||
| 14 | W10070240 | Front, Middle Drawer (black) |
|
- | |||||
| 14 | W10011480 | Front, Middle Drawer (white) |
|
- | |||||
| 15 | W10070180 | Front, Bottom Drawer (black) |
|
- | |||||
| 15 | W10011470 | Front, Bottom Drawer (white) |
|
- | |||||
| 15 | W10070210 | Front, Bottom Drawer (ultimate Silver) |
|
- | |||||
| 16 | WP3400806 | Screw, 8-18 X 1-1/4 (Replaces: W10113962) |
|
$ 8.10 | |||||
| 17 | W10011410 | Drawer Bin, Large (2) |
|
- | |||||
| 18 | W10011500 | Drawer Bin, (small) |
|
- | |||||
| 20 | W10011420 | Slide, Assembly |
|
- | |||||
| 21 | WP3359452 | Nut, Foot (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 22 | WP8563585 | Leveling Foot & Nut (Replaces: 8563585) |
|
Immediately | $ 14.76 | ||||
| 24 | W10011660 | Clip, Top Lock |
|
- | |||||
| 25 | W10101220 | Push Mechanism Assembly |
|
- | |||||
| 26 | WP1163283 | Screw, 8-18 X 1/2 (Replaces: 3400842) |
|
$ 7.55 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) ( White) (Replaces: 350930) |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) |
|
$ 59.89 | ||||||
| 8212605 | Paint, Touch-up (1/2oz.) (ultimate Silver) |
|
$ 16.01 | ||||||
| 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 12.30 | |||||
| 72032 | Paint, Touch-up (1/2oz.) (black) |
|
Immediately | $ 18.69 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer, Gray) |
|
- |
