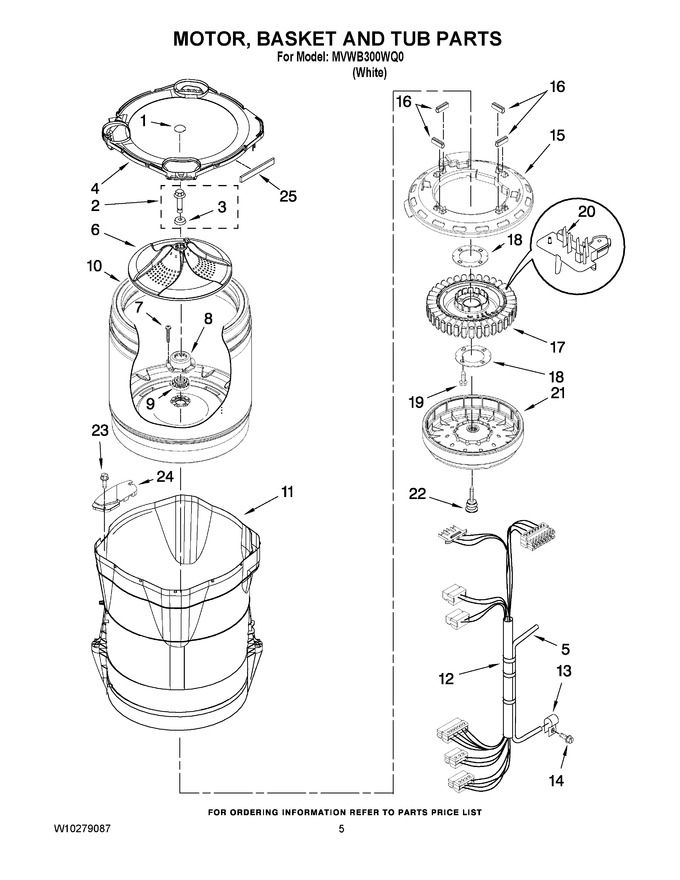

03 - Motor, Basket And Tub Parts


04 - Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10149460		Cap, Impeller				$ 5.70
2	W10076270		Screw & Washer Assembly				$ 5.83
3	WPW10076260		Washer   (Replaces: W10076260)				$ 11.88
4	W10260488		Tub Ring (includes Item 25)		Appelez-nous	-
5	WP353244		Hose Pressure Switch   (Replaces: 8572540)			Immediately	$ 59.93
6	W11252784		Impeller (washplate)   (Replaces: W10141017)				$ 278.71
7	WP8533953		Screw, 8-16 X 1.000 (6)   (Replaces: 8533953)			Immediately	$ 7.55
8	W10820039		Hub, Basket-driven (includes Item 9)   (Replaces: W10118114)			Immediately	$ 36.28
9	W10820039		Hub, Basket-driver (includes Item 8)   (Replaces: 8545953)			Immediately	$ 36.28
10	W10118182		Basket Assembly (includes Items 7, 8, & 9)		Appelez-nous	-
11	W10193886		Tub & Drive Shaft Assembly   (Replaces: W10128830)				$ 763.01
12	W10137697		Harness, Lower (includes Item 5)				$ 113.67
13	W10005430		Clamp, Pressure Hose Retainer			Immediately	$ 9.53
14	8533957		Screw, 10-16 X 1/2				$ 12.60
15	W10137698		Shield, Drive Motor (includes Item 16)				$ 37.16
16	8565172		Tube, Buffer (set Of 4)		Appelez-nous	-
17	WPW10419333		Stator, Motor (includes Item 18)   (Replaces: 8565170)			Immediately	$ 349.42
18	WP8557836		Plate, Stator (set Of 2)   (Replaces: 8557836)			Immediately	$ 110.55
19	8534042		Screw, 1/4-20 X .968 (4)				$ 5.65
20	WPW10178988		Rps Assembly   (Replaces: W10137685)			Immediately	$ 49.28
21	280146		Rotor, Main Drive Motor (includes Item 22)   (Replaces: 8565177)			Immediately	$ 343.68
22	N/P		Bolt, Rotor Assembly Non-serviceable (supplied W/rotor)		Appelez-nous	-
23	WP8533928		Screw, 8-18 X 3/4 (2)   (Replaces: 8533928)			Immediately	$ 8.26
24	W10222008		Filter, Dual Pump Hood				$ 61.51
25	W10205824		Absorber, Impact (4)				$ 80.64
