SELECT A DIAGRAM

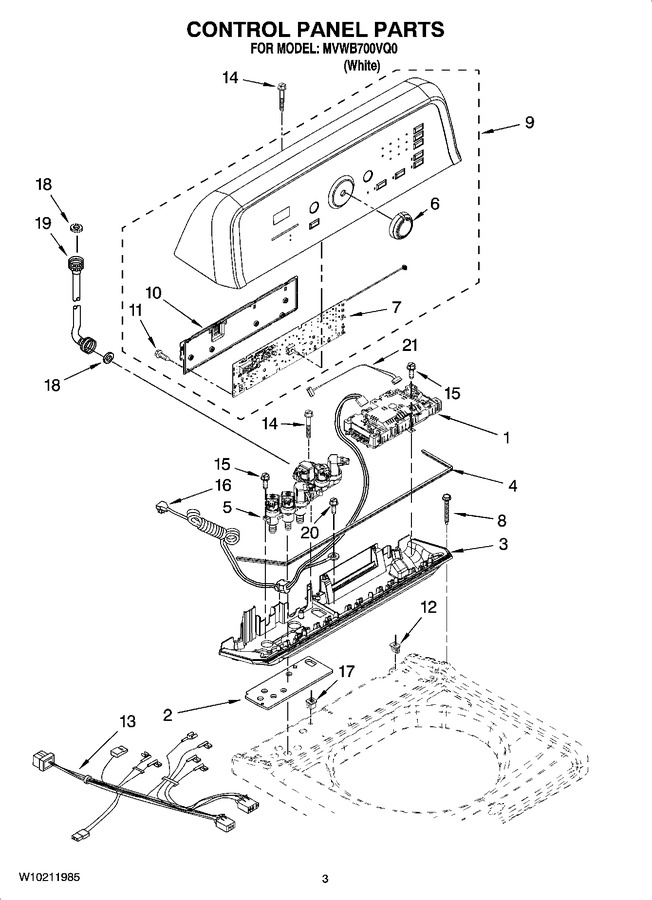

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10187488		Control Unit Assembly, Machine & Motor				$ 340.58
2	W10141695		Gasket, Valve Tray				$ 36.82
3	W10110213		Tray Assembly, Console (includes Items 2 & 4)				$ 22.60
4	W10141693		Gasket, Console/tray		Appelez-nous	-
5	W10128457		Valve, Log Assembly		Appelez-nous	-
6	WPW10051126		Knob, Control   (Replaces: W10051126)				$ 53.77
7	WPW10051111		User Interface   (Replaces: W10051101)				$ 267.42
8	W10004990		Screw, 6-20 X 1.2		Appelez-nous	-
9	W10143425		Console				$ 348.52
10	W10051124		Cover, Rear- User Interface				$ 263.67
11	WP4449745		Screw, 6-19 X 1/2 (3)   (Replaces: W10003770)				$ 7.98
12	W10022060		Nut, Push-in (3)		Appelez-nous	-
13	W10128687		Harness, Upper (includes Item 21)				$ 183.78
14	8565324		Screw, 10-16 X 1.75				$ 14.05
15	WP8281136		Screw, 8-18 X 3/4   (Replaces: 8281136)				$ 7.30
16	3407203		Cord Assembly, Power				$ 59.22
17	98460		Nut, Push-in (2)				$ 12.07
18	WP16123		Washer, Water Inlet Hose (1-1/16 X 5/8)(4)   (Replaces: 3976300)				$ 8.16
19	WP89503		Hose, Water Inlet (blue Coupler)   (Replaces: W10194208)			Immediately	$ 24.09
19	WP89503		Hose, Water Inlet (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
20	WP3351614		Screw, Power Cord Ground   (Replaces: 3351614)			Immediately	$ 7.30
21	3407187		Harness, Thermistor				$ 135.40
