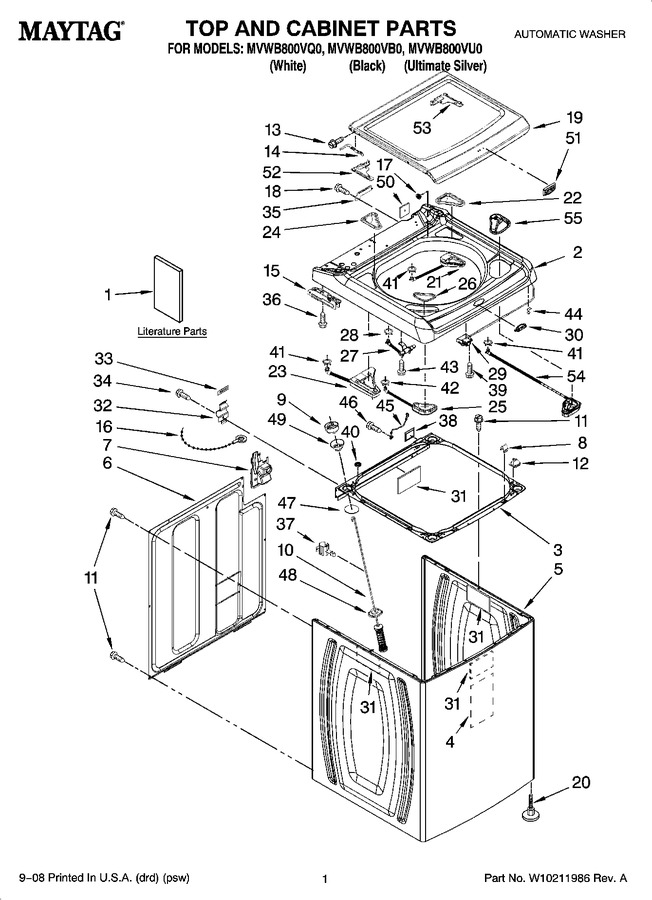

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10110838		Tech Sheet		Appelez-nous	-
1	W10092764		Use & Care Guide (english/french)		Appelez-nous	-
1	W10092767		Use & Care Guide (spanish)		Appelez-nous	-
1	W10092765		Quick Start Guide (english/french)		Appelez-nous	-
1	W10092769		Energy Guide		Appelez-nous	-
1	W10092768		Quick Start Guide (spanish)		Appelez-nous	-
2	W10141677		Top (white)				$ 158.89
2	W10110834		Top (black)		Appelez-nous	-
2	W10178403		Top (ultimate Silver)		Appelez-nous	-
3	W10162604		Frame Assembly, Cabinet Top (includes Items 31 & 38)		Appelez-nous	-
4	W11096159		Sound Absorber, Cabinet   (Replaces: W10177046)				$ 28.73
5	8566097		Cabinet (white)		Appelez-nous	-
5	W10045598		Cabinet (black)		Appelez-nous	-
5	W10110811		Cabinet (ultimate Silver)		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: W10160572)				$ 8.58
8	WP8563785		Lock, Top- Front (2)   (Replaces: 8563785)				$ 7.96
9	W10198919		Ball, Suspension (4)   (Replaces: W10111536)				$ 150.90
10	W10820048		Damper Assembly, Tub Suspension (set Of 4-includes Items 47, 48 & 49)   (Replaces: 8566146)			Immediately	$ 82.85
11	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 8.40
12	W10042120		Locator, Top (2)				$ 7.04
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.55
14	WP8563964		Hinge Arm, Lid (2)   (Replaces: 8563964)			Immediately	$ 9.19
15	WPW10141682		Hinge, Spring Assembly (left)   (Replaces: W10141682)				$ 183.87
15	W10141681		Hinge, Spring Assembly (right)				$ 79.22
16	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 7.02
17	WPW10119519		Bearing, Lid Hinge (2)   (Replaces: W10119519)				$ 8.09
18	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
19	W10187142		Lid, Glass Assembly (ultimate Silver)				$ 276.60
19	W10194735		Lid, Glass Assembly (black)		Appelez-nous	-
19	WPW10119492		Lid, Glass Assembly (white)   (Replaces: W10119492)				$ 422.48
20	W10739673		Foot Assembly, Leveling (4)   (Replaces: 8578826)				$ 14.33
21	WPW10172146		Dispenser, Fabric Softener   (Replaces: W10172146)				$ 171.44
22	W10185300		Bezel, Fabric Softener Dispenser (ultimate Grey)		Appelez-nous	-
22	W10197499		Bezel, Fabric Softener Dispenser (black)		Appelez-nous	-
22	WPW10136371		Bezel, Fabric Softener Dispenser (white)   (Replaces: W10136371)				$ 31.00
23	W10170353		Dispenser, Bleach				$ 108.82
24	W10197501		Bezel, Bleach Dispenser (black)		Appelez-nous	-
24	WP8563876		Bezel, Bleach Dispenser (white)   (Replaces: 8563876)				$ 30.27
24	W10185298		Bezel, Bleach Dispenser (ultimate Grey)		Appelez-nous	-
25	WPW10172154		Dispenser, Detergent   (Replaces: W10172154)			Immediately	$ 171.35
26	WP8563877		Bezel, Detergent Dispenser (white)   (Replaces: 8563877)				$ 31.91
26	W10197505		Bezel, Detergent Dispenser (black)		Appelez-nous	-
26	W10185296		Bezel, Detergent Dispenser (ultimate Grey)		Appelez-nous	-
27	WPW10106990		Nozzle Assembly, Fresh Water   (Replaces: W10106990)				$ 107.07
28	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 155.46
30	W10158234		Bezel, Lid Lock (ultimate Grey)				$ 34.59
30	8572019		Bezel, Lid Lock (white)				$ 39.65
30	W10052520		Bezel, Lid Lock (black)				$ 7.78
31	WP8564458		Absorber, Impact   (Replaces: 8564458)			Immediately	$ 8.38
32	WP8564456		Hinge, Top (2)   (Replaces: 8564456)				$ 96.01
33	18849		Pad, Top Hinge (2)				$ 21.15
34	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
35	8563941		Cover, Harness				$ 87.73
36	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
37	8543784		Bracket, Drain Hose				$ 37.38
38	8578386		Shield, Wire Harness		Appelez-nous	-
39	WP8281136		Screw, 10-16 X 3/4   (Replaces: 8281136)				$ 7.30
40	8576476		Spacer, Rear (cabinet/top)				$ 17.57
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
42	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
43	W11700520		Screw, 10-16 X 9/16   (Replaces: 3400061)				$ 14.28
44	WP90016		Clip, Harness (5)   (Replaces: 90016)				$ 11.89
45	3184020		Wire, Ground Jumper   (Replaces: 8281736)				$ 86.92
46	W10846509		Screw, 10-32 X 5/8   (Replaces: 3400076)			Immediately	$ 8.20
47	WP8577896		Washer, Suspension Umbrella (4)   (Replaces: 8577896)				$ 8.12
48	WP8564017		Cup, Suspension (4)   (Replaces: 8564017)				$ 28.79
49	W10198919		Bushing - Suspension, Upper (4)   (Replaces: W10167599)				$ 150.90
50	W10161707		Top Foam Seal		Appelez-nous	-
51	W10153170		Medallion				$ 28.25
52	W10110826		Cap-hinge, Left (ultimate Grey)		Appelez-nous	-
52	W10119509		Cap-hinge, Left (white)				$ 16.16
52	W10093814		Cap-hinge, Left (black)   (Replaces: W10194739)				$ 16.47
53	W10119508		Cap-hinge, Right (white)				$ 13.73
53	W10194738		Cap-hinge, Right (black)		Appelez-nous	-
53	W10110824		Cap-hinge, Right (ultimate Grey)		Appelez-nous	-
54	W10170964		Dispenser, Stain Remover				$ 123.55
55	W10182876		Bezel, Stain Remover Dispenser (ultimate Grey)		Appelez-nous	-
55	W10139794		Bezel, Stain Remover Dispenser (white)		Appelez-nous	-
55	W10197507		Bezel, Stain Remover Dispenser (black)		Appelez-nous	-
