SELECT A DIAGRAM

01 - Top And Cabinet Parts

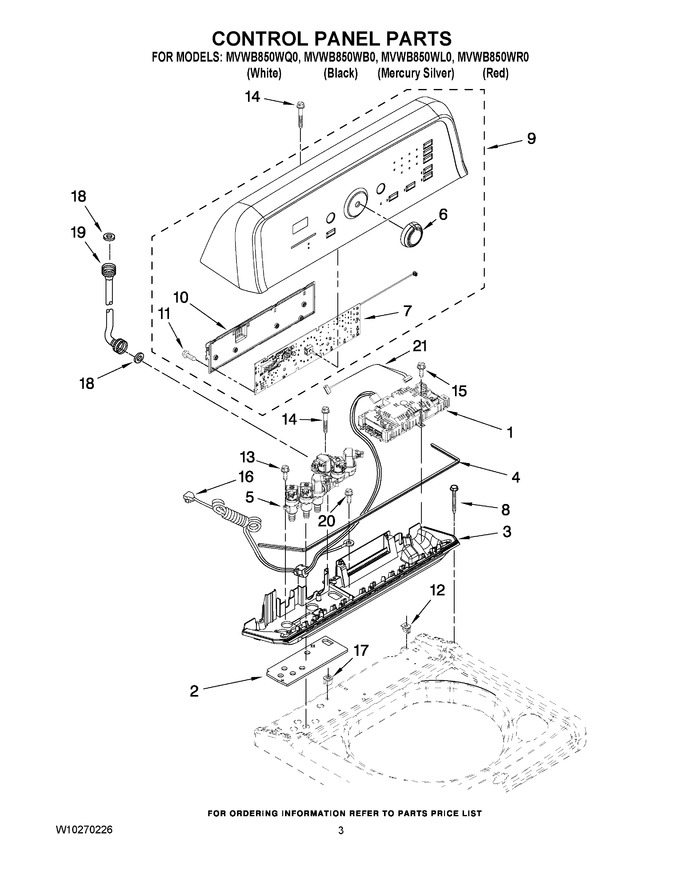

02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10253695		Control Unit Assembly, Machine & Motor				$ 339.57
2	W10141695		Gasket, Valve Tray				$ 36.82
3	W10110213		Tray Assembly, Console (includes Items 2 & 4) (white)				$ 22.60
3	W10110304		Tray Assembly, Console (includes Items 2 & 4) (black)		Appelez-nous	-
3	W10110846		Tray Assembly, Console (includes Items 2 & 4) (grey)		Appelez-nous	-
4	W10141693		Gasket, Console/tray		Appelez-nous	-
5	W10371507		Valve, Log Assembly (includes Item 21)   (Replaces: W10188360)				$ 330.73
6	WPW10051126		Knob, Control   (Replaces: W10051126)				$ 53.77
7	WPW10260184		User Interface   (Replaces: W10260184)				$ 306.35
8	W10004990		Screw, 6-20 X 1.2		Appelez-nous	-
9	W10090760		Console (red)				$ 366.23
9	W10090755		Console (white)				$ 283.59
9	W10090762		Console (black)		Appelez-nous	-
9	W10090761		Console (mercury Silver)		Appelez-nous	-
10	W10051124		Cover, Rear- User Interface				$ 263.67
11	WP4449745		Screw, 6-19 X 1/2 (3)   (Replaces: W10003770)				$ 7.98
12	W10022060		Nut, Push-in (3)		Appelez-nous	-
13	WPW10052600		Screw, 8-18 X 3/4   (Replaces: W10052600)				$ 7.30
14	8565324		Screw, 10-16 X 1.75				$ 14.05
15	WP8281136		Screw, 8-18 X 3/4   (Replaces: 8281136)				$ 7.30
16	W10051098		Cord Assembly, Power				$ 73.22
17	98460		Nut, Push-in (2)				$ 12.07
18	WP16123		Washer, Water Inlet Hose (1-1/16 X 5/8)(4)   (Replaces: W10242307)				$ 8.16
19	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194208)			Immediately	$ 24.09
19	WP89503		Hose, Water Inlet (hot Water)   (Replaces: 8571378)			Immediately	$ 24.09
20	WP3351614		Screw, Power Cord Ground   (Replaces: 3351614)			Immediately	$ 7.30
21	3407187		Harness, Thermistor				$ 135.40

    View Diagram in Separate Window       Print Part List
