SELECT A DIAGRAM

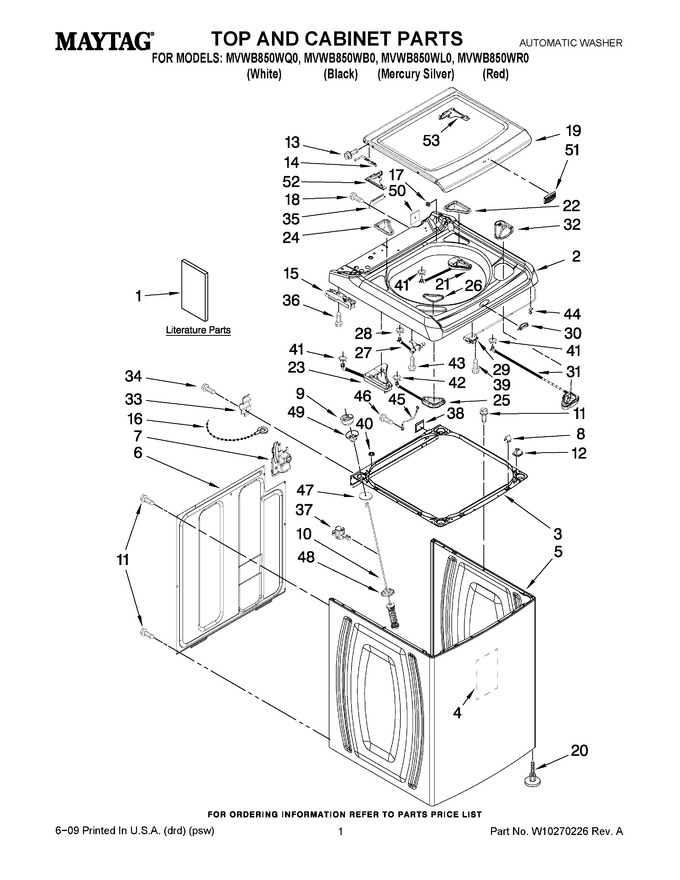

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10092822		Use & Care Guide (english/french)		Appelez-nous	-
1	W10092820		Energy Guide		Appelez-nous	-
1	W10178406		Performance Sheet (spanish)		Appelez-nous	-
1	W10026652		Performance Sheet (english/french)		Appelez-nous	-
1	W10093831		Tech Sheet Improved Wash		Appelez-nous	-
1	W10092823		Use & Care Guide (spanish)		Appelez-nous	-
1	W10240438		Installation Instructions (english/french)		Appelez-nous	-
1	W10240439		Installation Instructions (spanish)		Appelez-nous	-
2	W10110834		Top (black)		Appelez-nous	-
2	W10141677		Top (white)				$ 158.89
2	W10093801		Top (red)		Appelez-nous	-
2	W10093800		Top (mercury Silver)				$ 125.28
3	W10162604		Frame Assembly, Cabinet Top (includes Item 38)		Appelez-nous	-
4	W11096159		Sound Absorber, Cabinet   (Replaces: W10177046)				$ 27.36
5	8566097		Cabinet (white)		Appelez-nous	-
5	W10045598		Cabinet (black)		Appelez-nous	-
5	W10093798		Cabinet (mercury Silver)		Appelez-nous	-
5	W10093799		Cabinet (red)		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: W10160572)				$ 8.17
8	WP8563785		Lock, Top- Front (2)   (Replaces: 8563785)				$ 7.58
9	W10198919		Ball, Suspension (set Of 4 -includes Item 49)   (Replaces: W10111536)				$ 143.71
10	W10247710		Damper Assembly, Tub Suspension (set Of 4-includes Items 9, 47, 48 & 49)   (Replaces: W10256514)			Immediately	$ 185.21
11	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.86
12	W10042120		Locator, Top (2)				$ 7.04
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.19
14	WP8563964		Hinge Arm, Lid (2)   (Replaces: 8563964)			Immediately	$ 8.30
15	WPW10141682		Hinge, Spring Assembly (left)   (Replaces: W10141682)				$ 175.11
15	W10141681		Hinge, Spring Assembly (right)				$ 79.22
16	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 6.17
17	WPW10119519		Bearing, Lid Hinge (2)   (Replaces: W10119519)				$ 7.70
18	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
19	W10093823		Lid, Glass Assembly (black)				$ 237.59
19	WPW10119492		Lid, Glass Assembly (white)   (Replaces: W10119492)				$ 402.36
19	W10093818		Lid, Glass Assembly (red)				$ 284.67
19	W10093817		Lid, Glass Assembly (mercury Silver)				$ 267.77
20	W10240448		Foot Assembly, Leveling (4)				$ 5.85
21	WPW10172146		Dispenser, Fabric Softener   (Replaces: W10172146)				$ 163.28
22	WPW10136371		Softener Dispenser (white)   (Replaces: W10136371)				$ 29.52
22	W10093807		Softener Dispenser (jade Gray)				$ 24.16
23	W10170353		Dispenser, Bleach				$ 108.82
24	WP8563876		Bezel, Bleach Dispenser (white)   (Replaces: 8563876)				$ 28.83
24	W10093808		Bezel, Bleach Dispenser (jade Gray)				$ 16.50
25	WPW10172154		Dispenser, Detergent   (Replaces: W10172154)			Immediately	$ 163.19
26	WP8563877		Bezel, Detergent Dispenser (white)   (Replaces: 8563877)				$ 30.39
26	W10093809		Bezel, Detergent Dispenser (jade Gray)				$ 24.75
27	WPW10106990		Nozzle Assembly, Fresh Water   (Replaces: W10106990)				$ 101.97
28	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 143.05
30	8572019		Bezel, Lid Lock (white)				$ 39.65
30	W10093806		Bezel, Lid Lock (jade Gray)				$ 22.70
31	W10170964		Dispenser, Stain Remover				$ 117.67
32	W10139794		Bezel, Stain Remover Dispenser (white)		Appelez-nous	-
32	W10093810		Bezel, Stain Remover Dispenser (jade Gray)				$ 33.42
33	WP8564456		Hinge, Top (2)   (Replaces: 8564456)				$ 91.44
34	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
35	8563941		Cover, Harness				$ 83.55
36	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
37	8543784		Bracket, Drain Hose				$ 37.38
38	8578386		Shield, Wire Harness		Appelez-nous	-
39	WP8281136		Screw, 10-16 X 3/4   (Replaces: 8281136)				$ 6.95
40	8576476		Spacer, Rear (cabinet/top)				$ 16.73
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.40
42	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
43	W11700520		Screw, 10-16 X 9/16   (Replaces: 3400061)				$ 13.60
44	WP90016		Clip, Harness (5)   (Replaces: 90016)				$ 11.32
45	3184020		Wire, Ground Jumper   (Replaces: 8281736)				$ 82.78
46	W10846509		Screw, 10-32 X 5/8   (Replaces: 3400076)			Immediately	$ 7.76
47	WP8577896		Washer, Suspension Umbrella (4)   (Replaces: 8577896)				$ 7.73
48	WP8564017		Cup, Suspension (4)   (Replaces: 8564017)				$ 27.42
49	W10198919		Bushing, Suspension (set Of 4-includes Item 9)   (Replaces: W10167599)				$ 143.71
50	W10161707		Top Foam Seal		Appelez-nous	-
51	W10153170		Medallion				$ 28.25
52	W10119509		Cap-hinge, Left (white)				$ 15.39
52	W10093814		Cap-hinge, Left (jade Gray)				$ 15.69
53	W10093813		Cap-hinge, Right (jade Gray)				$ 18.15
53	W10119508		Cap-hinge, Right (white)				$ 13.73

    View Diagram in Separate Window       Print Part List
