Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1125597 Shelf Assembly, Cantilever (3) Appelez-nous -
2 1125593 Glass, Shelf Appelez-nous -
3 1125594 Retainer, Glass Appelez-nous -
4 1125786 Gasket, Front Appelez-nous -
5 WP2161491 Pan Cover Assembly (2)   (Replaces: 1126153) Special Order $ 237.43

6 WP1125528 Gasket, Cover (front)   (Replaces: 1125705) Special Order $ 161.69

7 1125706 Gasket, Cover (rear) Appelez-nous -
8 1125822 Glass, Cover (2) Appelez-nous -
9 1125599 Pan Shelf & Slide Assembly Appelez-nous -
10 1125595 Glass, Shelf Appelez-nous -
11 1125814 Gasket (front) Appelez-nous -
12 1125817 Gasket (rear) Appelez-nous -
13 1112308 Eyelet, Roller Appelez-nous -
14 1112303 Roller Appelez-nous -
15 WP489261 Screw   (Replaces: 489261) Special Order $ 8.33

16 1125602 Crisper Pan (2) Appelez-nous -
17 1125603 Utility Pan Appelez-nous -
18 1125530 Roller, R.s. Appelez-nous -

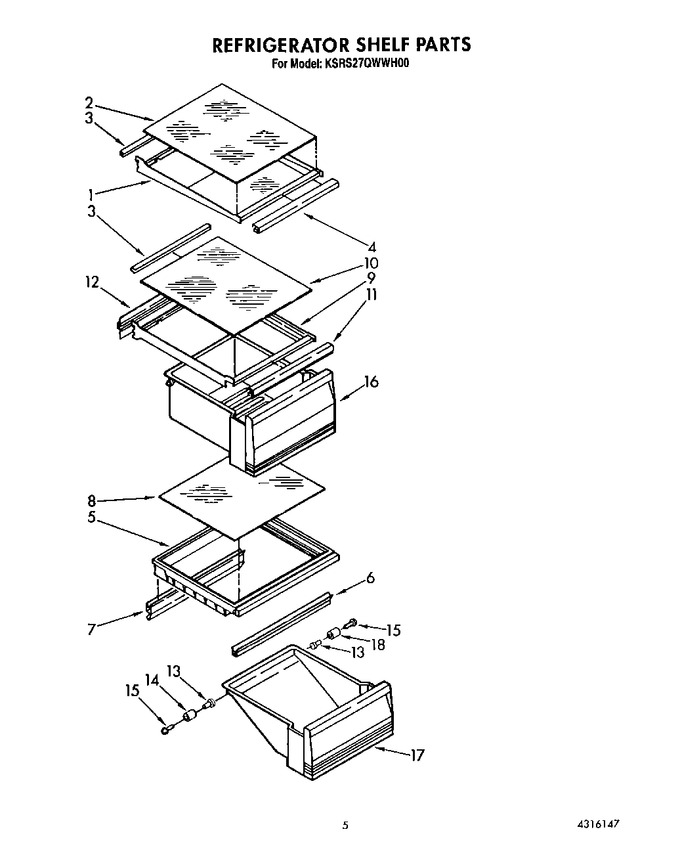

    View Diagram in Separate Window     Print Icon   Print Part List
