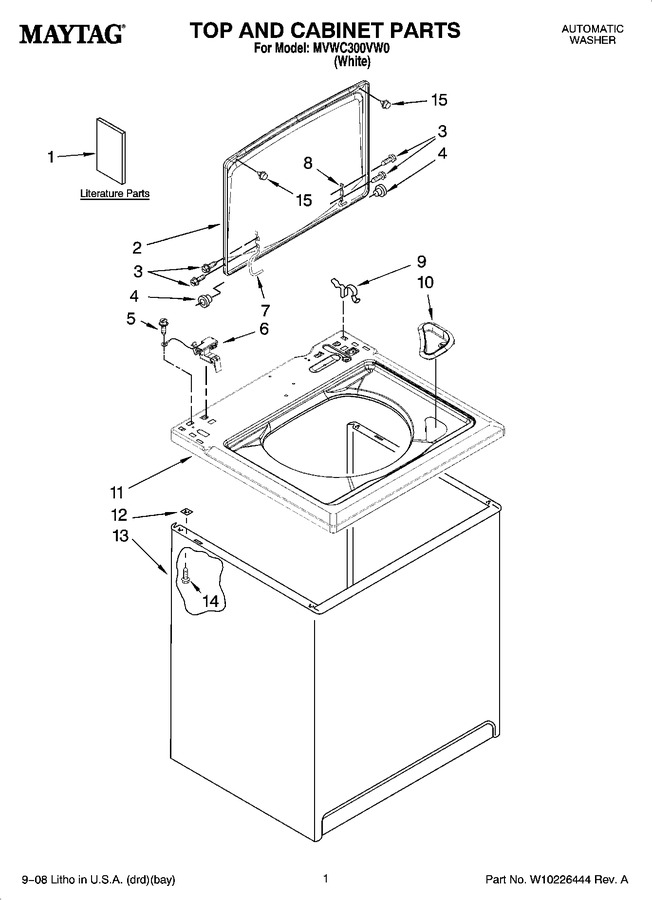

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10092803		Feature Sheet (spanish)		Appelez-nous	-
1	W10175559		Wiring Diagram		Appelez-nous	-
1	W10092806		Energy Guide		Appelez-nous	-
1	W10200331		Installation Instructions (english/french)		Appelez-nous	-
1	W10200662		Installation Instructions (spanish)		Appelez-nous	-
1	W10092796		Use & Care Guide (english/french)		Appelez-nous	-
1	W10092797		Use & Care Guide (spanish)		Appelez-nous	-
1	W10092802		Feature Sheet (english/french)		Appelez-nous	-
2	W10093782		Lid		Appelez-nous	-
3	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.19
4	8319539		Bearing, Lid Hinge (2)				$ 5.51
5	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
6	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
7	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
8	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 27.45
9	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
10	WPW10192089		Dispenser, Bleach   (Replaces: W10192089)			Immediately	$ 7.96
11	W10194868		Top				$ 128.66
12	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
13	63424		Cabinet				$ 370.02
14	WP3390631		Screw 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 7.82
15	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.93
