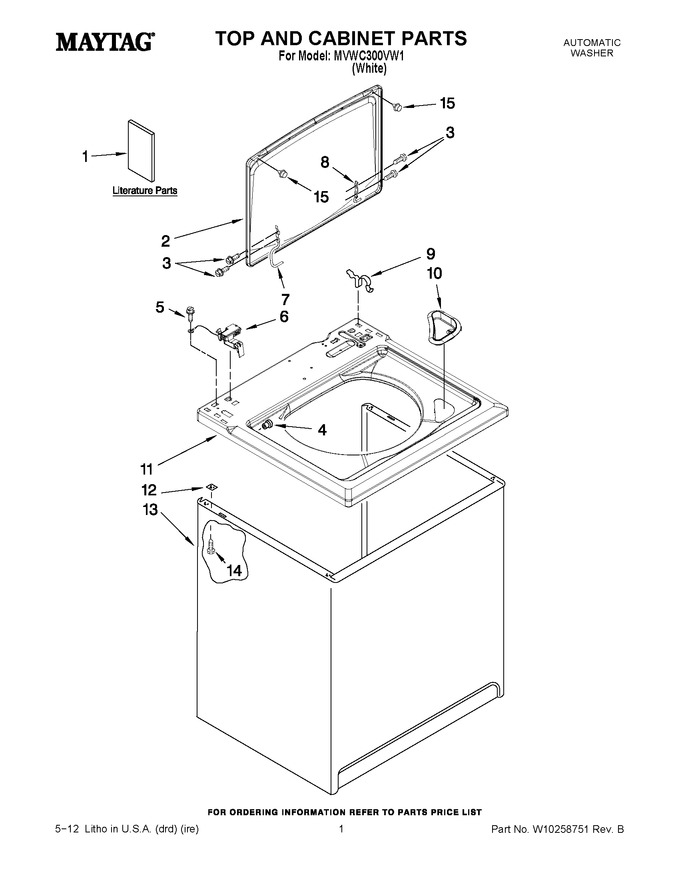

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10200890 | Installation Instructions (english/french) |
|
- | |||||
| 1 | W10330942 | Use & Care Guide |
|
- | |||||
| 1 | W10200891 | Spanish |
|
- | |||||
| 1 | W10175559 | Wiring Diagram |
|
- | |||||
| 1 | W10092829 | Energy Guide |
|
- | |||||
| 2 | W10093782 | Lid |
|
- | |||||
| 3 | WPW10119828 | Screw, Lid Hinge Mounting (Replaces: W10119828) |
|
Immediately | $ 6.80 | ||||
| 4 | 8319539 | Bearing, Lid Hinge |
|
$ 5.51 | |||||
| 5 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 6 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 36.59 | ||||
| 7 | W10225136 | Hinge, Lid (l.h.) |
|
$ 26.22 | |||||
| 8 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 25.94 | |||||
| 9 | WP62780 | Clip, Top & Cabinet & Rear Panel (Replaces: 62780) |
|
Immediately | $ 7.37 | ||||
| 10 | WPW10192089 | Dispenser, Bleach (Replaces: W10192089) |
|
Immediately | $ 7.52 | ||||
| 11 | W10194868 | Top |
|
$ 128.66 | |||||
| 12 | WP62750 | Spacer, Cabinet To Top (Replaces: 62750) |
|
Immediately | $ 7.26 | ||||
| 13 | 63424 | Cabinet |
|
$ 349.67 | |||||
| 14 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.43 | |||||
| 15 | WP9724509 | Bumper, Lid (Replaces: 9724509) |
|
Immediately | $ 7.50 |
