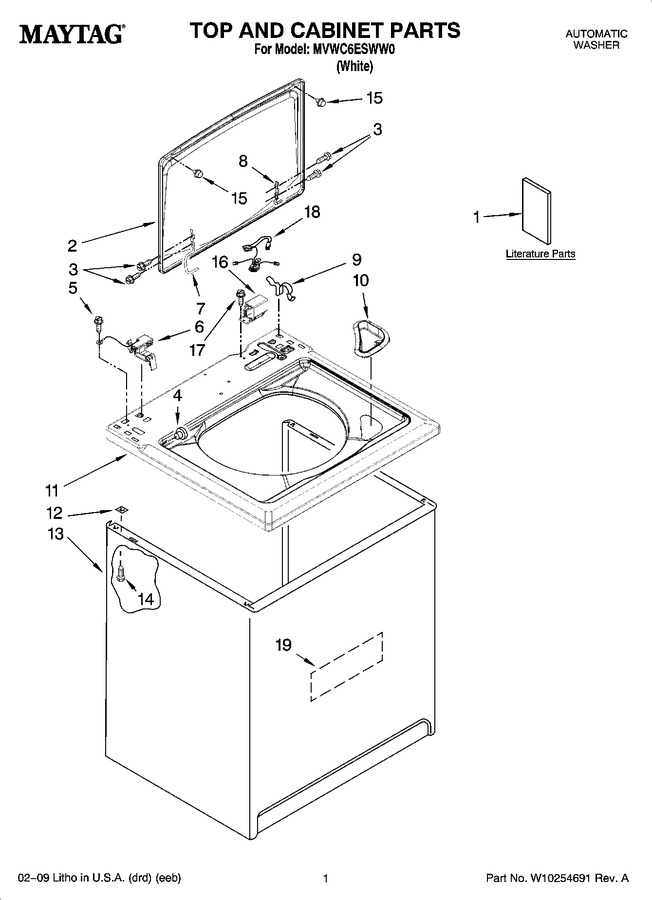

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10196538 | Load Sense Info Sheet |
|
- | |||||
| 1 | W10202237 | Wiring Diagram |
|
- | |||||
| 1 | W10092813 | Energy Guide |
|
- | |||||
| 1 | W10200331 | Installation Instructions (english/french) |
|
- | |||||
| 1 | W10200662 | Installation Instructions (spanish) |
|
- | |||||
| 1 | W10092798 | Use & Care Guide (english/french) |
|
- | |||||
| 1 | W10092799 | Use & Care Guide (spanish) |
|
- | |||||
| 1 | W10092811 | Feature Sheet (english/french) |
|
- | |||||
| 1 | W10092812 | Feature Sheet (spanish) |
|
- | |||||
| 2 | W10093782 | Lid |
|
- | |||||
| 3 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: W10119828) |
|
Immediately | $ 7.55 | ||||
| 4 | 8319539 | Bearing, Lid Hinge (2) |
|
$ 5.51 | |||||
| 5 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 6 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 39.82 | ||||
| 7 | W10225136 | Hinge, Lid (l.h.) |
|
$ 26.22 | |||||
| 8 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 28.82 | |||||
| 9 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 8.19 | ||||
| 10 | WPW10192089 | Dispenser, Bleach (Replaces: W10192089) |
|
Immediately | $ 8.36 | ||||
| 11 | W10194868 | Top |
|
$ 128.66 | |||||
| 12 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 8.07 | ||||
| 13 | 63424 | Cabinet |
|
$ 388.52 | |||||
| 14 | W10165554 | Screw, 10-16 X 3/8 (4) |
|
$ 11.55 | |||||
| 15 | WP9724509 | Bumper, Lid (2) (Replaces: 9724509) |
|
Immediately | $ 8.33 | ||||
| 16 | WPW10367632 | Filter, Rfi (Replaces: 8540229) |
|
$ 128.33 | |||||
| 17 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 18 | W10217789 | Harness, Jumper |
|
$ 39.28 | |||||
| 19 | W11096159 | Cabinet - Damper, Sound (Replaces: W10177046) |
|
$ 28.73 |
