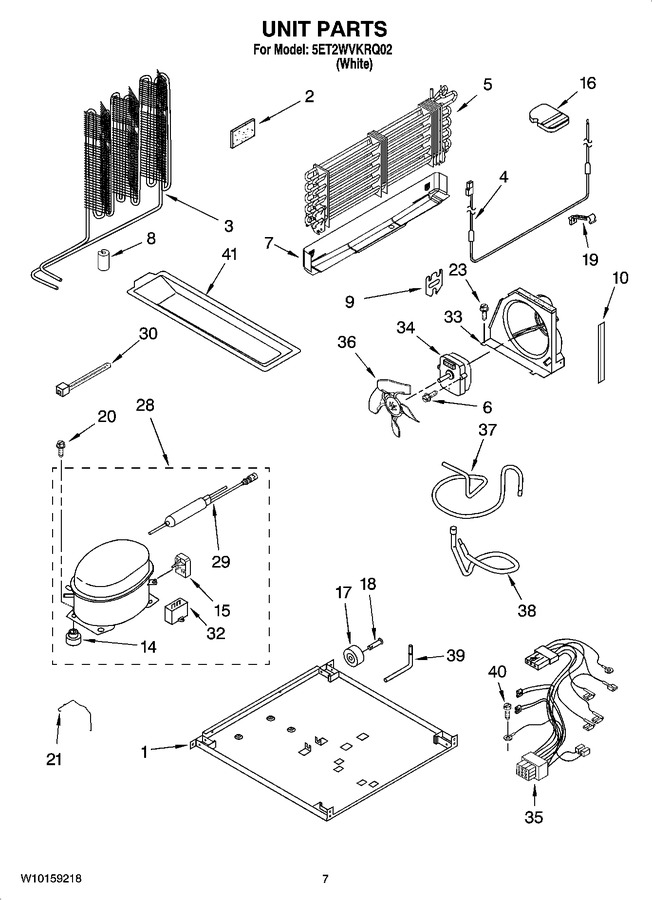

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2320187 | Plate, Unit Mounting |
|
- | |||||
| 2 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 3 | 2214960 | Condenser |
|
$ 141.57 | |||||
| 4 | W10123580 | Heater, Defrost |
|
- | |||||
| 5 | 2254249 | Evaporator Assy |
|
$ 239.15 | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 7 | 2254295 | Drain Pan |
|
$ 74.91 | |||||
| 8 | W10852725 | Grommet, Cond (4) (Replaces: 2319835) |
|
$ 8.09 | |||||
| 9 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2300638 | Extension, Air Baffle |
|
$ 52.69 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 15 | 2321301 | Start-device Combination (start Relay And Overload For Production Compressor Only) |
|
- | |||||
| 16 | 2201185 | Support Block |
|
$ 8.21 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 19.12 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 21 | 2302129 | Strap |
|
- | |||||
| 23 | 3400518 | Screw |
|
$ 13.63 | |||||
| 28 | W10170300 | Compressor (includes Items 14,29 & 32) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: 2321299) |
|
- | |||||
| 29 | W10843121 | Drier (production) (Replaces: 2319825) |
|
Immediately | $ 57.13 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 8.30 | |||||
| 32 | WP2201147 | Capacitor (service) (Replaces: 4387874) |
|
$ 135.42 | |||||
| 32 | 2321245 | Capacitor (production) (Replaces: 2254217) |
|
- | |||||
| 33 | 2302250 | Air Baffle |
|
$ 109.95 | |||||
| 34 | WP2321271 | Motor, Condenser (Replaces: 2321271) |
|
$ 325.47 | |||||
| 35 | W10123567 | Wire Assembly, Unit |
|
- | |||||
| 36 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 37 | 2205533 | Tube, Discharge |
|
- | |||||
| 38 | 2214924 | Tube, Suction |
|
$ 103.20 | |||||
| 39 | 2154109 | Tube, Process |
|
$ 76.26 | |||||
| 40 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 41 | WP2254574 | Tray, Evaporator (Replaces: 2254574) |
|
$ 183.59 | |||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 137.25 | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 |
