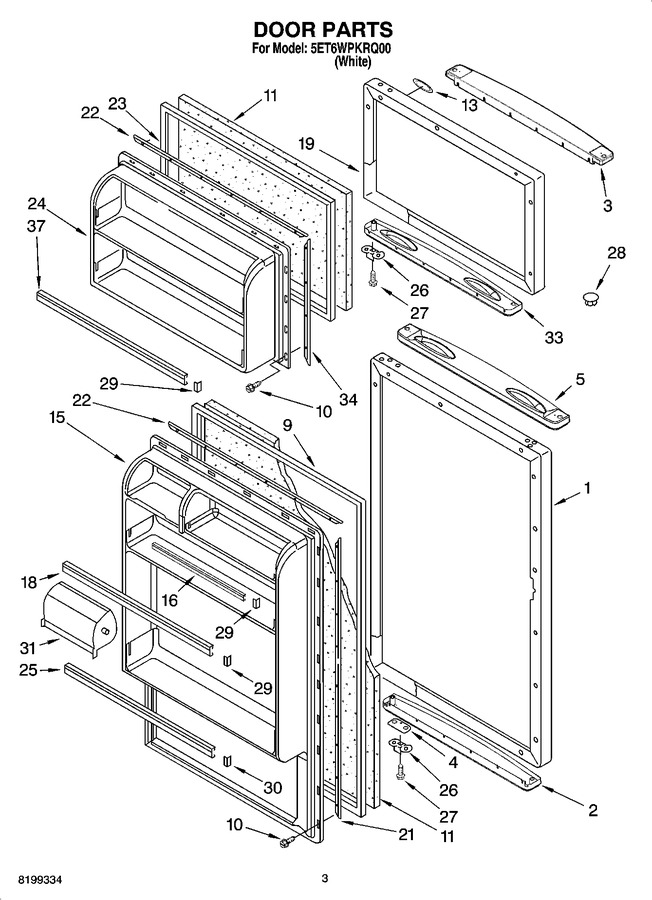

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2262075W		Refrigerator Door Panel (includes Illus. 2 & 5) (also Order Item 11)		Appelez-nous	-
2	2222012		Endcap, Bottom		Appelez-nous	-
3	2252860		Endcap, Top		Appelez-nous	-
4	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 7.19
5	2265645W		Handle, Endcap Refrigerator   (Replaces: 2222011)				$ 209.50
9	2188448A		Door Gasket, Magnetic   (Replaces: 2262078)				$ 154.65
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
13	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 88.74
15	2173725		Interior Door Panel (refrigerator)		Appelez-nous	-
16	2192654		Trim, Door Shelf (upper)		Appelez-nous	-
18	2192655		Trim, Door (middle)		Appelez-nous	-
19	2262076W		Freezer Door Panel (includes Illus. 3 & 33) (also Order Item 11)		Appelez-nous	-
21	1122551		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic   (Replaces: 2262079)			Immediately	$ 114.77
24	9790358		Interior Door Panel (freezer)		Appelez-nous	-
25	WP2266738		Trim, Door Shelf (lower)   (Replaces: 2192656)				$ 111.69
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	W10276642		Screw   (Replaces: 8533904)				$ 6.10
28	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 7.80
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	2192641		Compartment Door		Appelez-nous	-
33	2265645W		Handle, Endcap Freezer   (Replaces: 2258858W)				$ 209.50
34	1122553		Retainer, Gasket		Appelez-nous	-
37	WP2266727		Trim-door (2)   (Replaces: 2192653)			Immediately	$ 92.50
