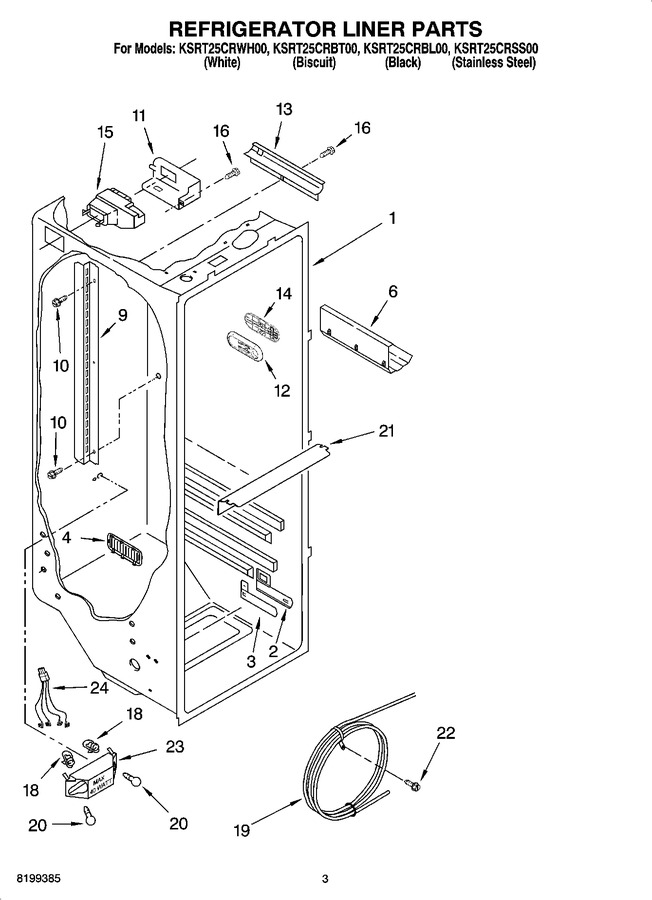

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2255612		Escutcheon, Meat Pan Control		Appelez-nous	-
3	2301339		Slide Meat Pan Control		Appelez-nous	-
4	2257741		Louver		Appelez-nous	-
6	W10777924		Wine Rack Asm   (Replaces: 2179404)				$ 23.60
9	2206273		Shelf Ladder		Appelez-nous	-
10	WP489478		Screw   (Replaces: 489478)				$ 7.75
11	WP2212240		Cover, Air Diffuser   (Replaces: 2212240)				$ 131.57
12	2301234		Door Control Asm		Appelez-nous	-
13	2150331		Cover, Conduit				$ 24.40
14	2301235		Slide, Door Control		Appelez-nous	-
15	WP2216112		Air Diffuser Assembly   (Replaces: 2216112)			Immediately	$ 358.86
16	W10759522		Screw   (Replaces: 486298)				$ 7.75
18	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
19	WPW10276792		Reservoir   (Replaces: 2305226)				$ 137.57
20	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
21	2209769		Light Lens		Appelez-nous	-
22	488280		Screw		Appelez-nous	-
23	2256035		Bracket, Dual Crisper				$ 62.54
24	2311637		Wire Harness, Dual Crisper   (Replaces: 2256037)				$ 140.23
