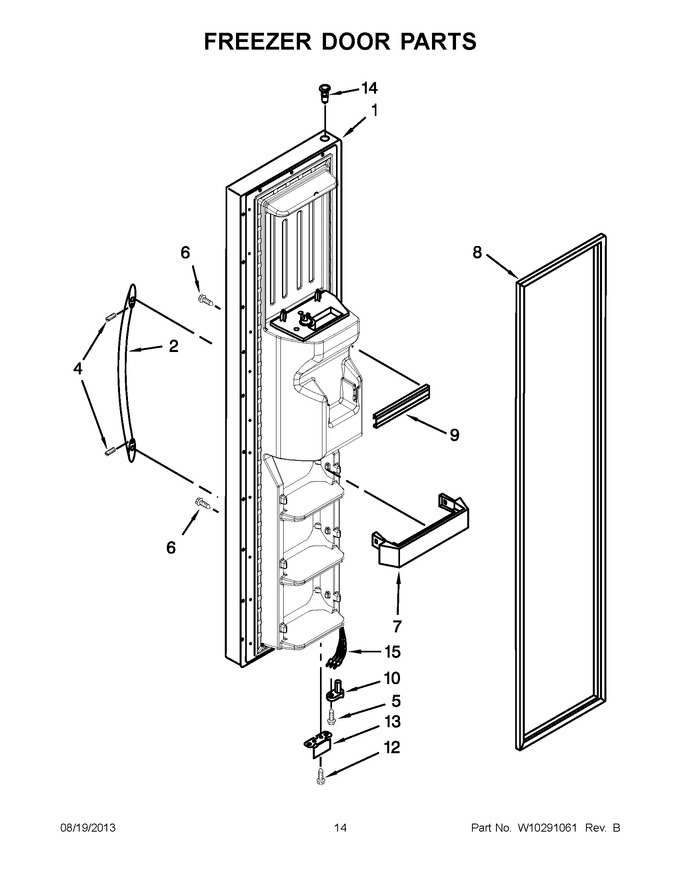

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10168062B		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10168062S		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10168062W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2319727W		Handle (white)				$ 106.80
2	2319727B		Handle (black)				$ 109.87
2	2319727S		Handle (stainless)				$ 133.96
4	WPW10010150		Screw (black)   (Replaces: W10010150)				$ 8.57
4	W11366418		Screw (silver)   (Replaces: W10010140)			Immediately	$ 18.43
5	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
6	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 9.66
7	2223559		Trivet				$ 28.77
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
8	2159074		Door Gasket, Magnetic (mist)   (Replaces: 2221303)				$ 325.70
9	WPW10307490		Trim, Shelf   (Replaces: 2219982)			Immediately	$ 24.27
10	2323535		Door Closer, Upper Cam (silver)				$ 33.97
12	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
13	W10175736		Bracket, Door Stop (black)		Appelez-nous	-
13	W10175735		Bracket, Door Stop (chrome)		Appelez-nous	-
14	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
15	W10193330		Wire Assembly, Door				$ 71.28

    View Diagram in Separate Window       Print Part List
