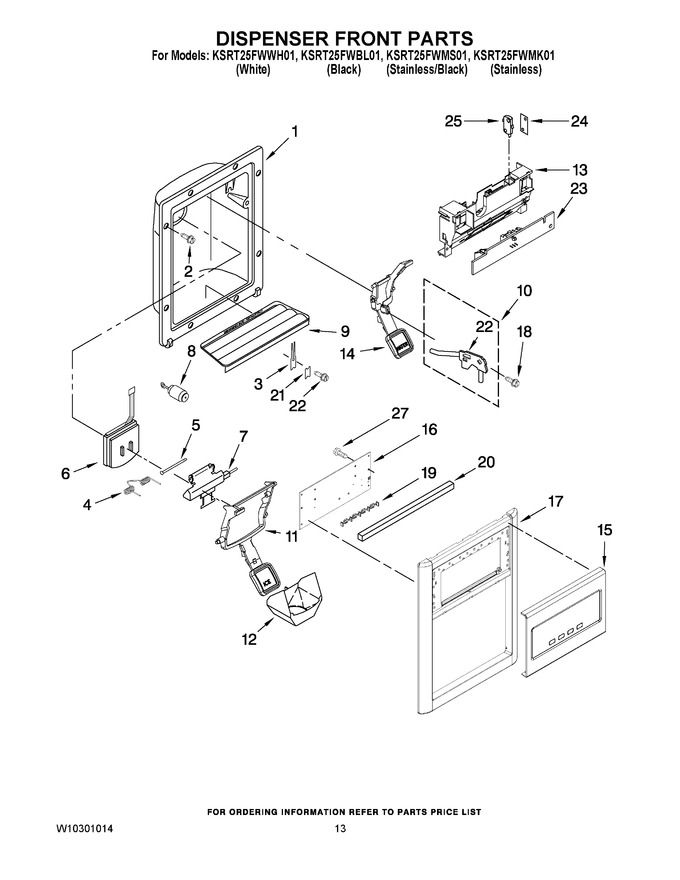

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP3196557 | Screw (Replaces: W10142284) |
|
Immediately | $ 7.95 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.77 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: W10224328) |
|
$ 83.24 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 14.58 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 24.69 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Delay Mechanism |
|
- | |||||
| 9 | W10139700 | Grille, Overflow (black) |
|
- | |||||
| 9 | W10139699 | Grille, Overflow (white) |
|
- | |||||
| 9 | W10171995 | Grille, Overflow (nickel One) |
|
- | |||||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: W10133007) |
|
$ 134.13 | |||||
| 11 | WPW10152854 | Lever, Ice Dispenser (black) (Replaces: W10152854) |
|
$ 103.81 | |||||
| 11 | WPW10152853 | Lever, Ice Dispenser (white) (Replaces: W10152853) |
|
$ 106.51 | |||||
| 11 | W10155161 | Lever, Ice Dispenser (apollo Gray) |
|
$ 99.73 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.63 | ||||
| 13 | W10728484 | Bracket, Control (Replaces: W10206221) |
|
$ 57.32 | |||||
| 14 | WPW10152859 | Lever, Water Dispenser (black) (Replaces: W10152859) |
|
Immediately | $ 97.92 | ||||
| 14 | WPW10152858 | Lever, Water Dispenser (white) (Replaces: W10152858) |
|
$ 104.60 | |||||
| 14 | W10155162 | Lever, Water Dispenser (apollo Gray) |
|
$ 68.97 | |||||
| 15 | W10236484 | Fascia Assy (white) |
|
- | |||||
| 15 | W10236486 | Fascia Assy (stainless) |
|
- | |||||
| 15 | W10236485 | Fascia Assy (black) |
|
- | |||||
| 16 | 2321749 | Control Board |
|
- | |||||
| 17 | 2322507W | Front Bezel-disp (white) |
|
- | |||||
| 17 | W10139840 | Front Bezel-disp (stainless) |
|
- | |||||
| 17 | 2322507B | Front Bezel-disp (black) |
|
- | |||||
| 18 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 7.84 | |||||
| 19 | W10170417 | Support, Window |
|
- | |||||
| 20 | W10129948 | Gasket |
|
- | |||||
| 21 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.67 | |||||
| 22 | WP2304673 | Bracket, Dispener (Replaces: 2304673) |
|
$ 15.60 | |||||
| 23 | W10245284 | Led Assy |
|
$ 62.79 | |||||
| 24 | 625834 | Spacer, Switch |
|
$ 7.99 | |||||
| 25 | WP2162361 | Switch, Bracket (Replaces: 2162361) |
|
Immediately | $ 27.34 | ||||
| 27 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.13 |
