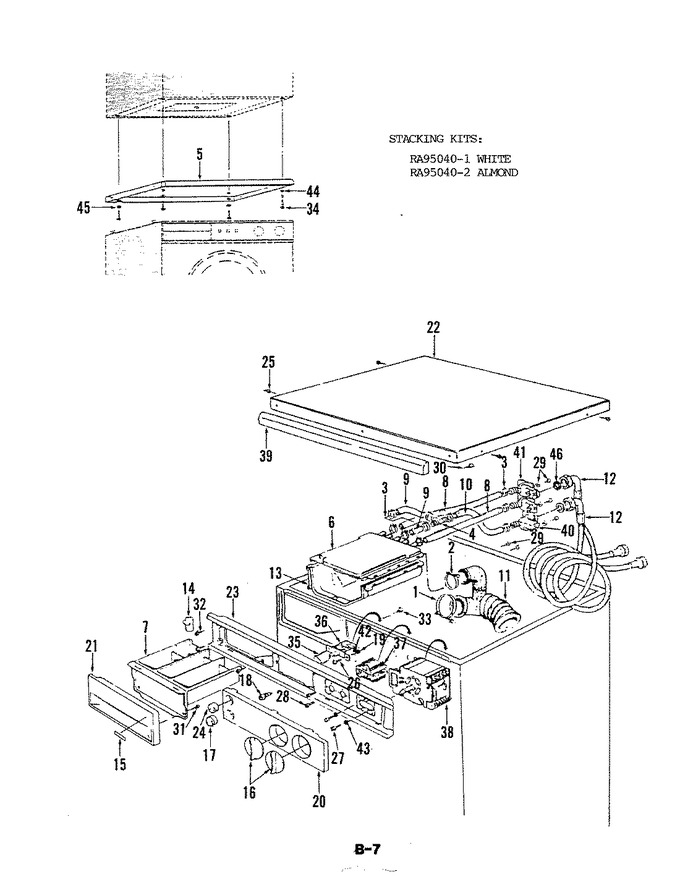

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet & Door
02 - Control Panel
03 - Tub
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 113200164 | Clamp |
|
- | |||||
| 2 | WP616099 | Clamp (Replaces: 113200404) |
|
Immediately | $ 7.81 | ||||
| 3 | WP596669 | Clamp (Replaces: 113200024) |
|
Immediately | $ 8.40 | ||||
| 4 | 112901982 | T Fitting |
|
- | |||||
| 5 | 111100774 | Am Cover |
|
- | |||||
| 6 | 112400304 | Disp Outlet And Housing |
|
- | |||||
| 7 | 112400392 | Dispenser Drwr |
|
- | |||||
| 8 | 114300716 | Hose |
|
- | |||||
| 9 | 114300718 | Hose |
|
- | |||||
| 10 | 114300683 | Hose |
|
- | |||||
| 11 | 114300715 | Hose |
|
- | |||||
| 12 | 119400110 | Inlet Hose |
|
- | |||||
| 13 | 112400302 | Disp Housing |
|
- | |||||
| 14 | 112400394 | Level Indicator |
|
- | |||||
| 15 | 33-9845 | Nameplate |
|
- | |||||
| 16 | 189990081 | Knob |
|
- | |||||
| 17 | 112902219 | Indicator Light |
|
- | |||||
| 18 | 116102567 | ``on`` Light |
|
- | |||||
| 19 | 920113418 | Nut |
|
- | |||||
| 20 | 119802655 | Control Panel |
|
- | |||||
| 21 | 112602966 | Disp Frnt Panel |
|
- | |||||
| 22 | 111100773 | Am Top Panel |
|
- | |||||
| 23 | 112400396 | Cntrl Mtg Plate |
|
- | |||||
| 24 | 112902035 | Pushbutton |
|
- | |||||
| 25 | 912344102 | Screw |
|
- | |||||
| 26 | 912133410 | Screw |
|
- | |||||
| 27 | WP4159193 | Screw (Replaces: 912131141) |
|
$ 4.77 | |||||
| 28 | WP488234 | Screw (Replaces: 912131137) |
|
$ 6.74 | |||||
| 29 | 995500001 | Screw |
|
- | |||||
| 30 | 912362330 | Screw |
|
- | |||||
| 31 | 913331132 | Screw |
|
- | |||||
| 32 | 991644512 | Screw |
|
- | |||||
| 33 | 911354239 | Screw |
|
- | |||||
| 34 | 917143112 | Screw |
|
- | |||||
| 35 | 182990081 | Spacer |
|
- | |||||
| 36 | 116102537 | Pushbutton Asm |
|
- | |||||
| 37 | 116102530 | Selector |
|
- | |||||
| 38 | 116102529 | Timer |
|
- | |||||
| 39 | 112902354 | Top Panel Trim |
|
- | |||||
| 40 | 116102549 | Hot Inlet Valve |
|
- | |||||
| 41 | 116102541 | Valve |
|
- | |||||
| 42 | 930036328 | Washer |
|
- | |||||
| 43 | 930046333 | Washer |
|
- | |||||
| 44 | 993210561 | Washer |
|
- | |||||
| 45 | 993041134 | Washer |
|
- | |||||
| 46 | 114200090 | Gasket |
|
- |
