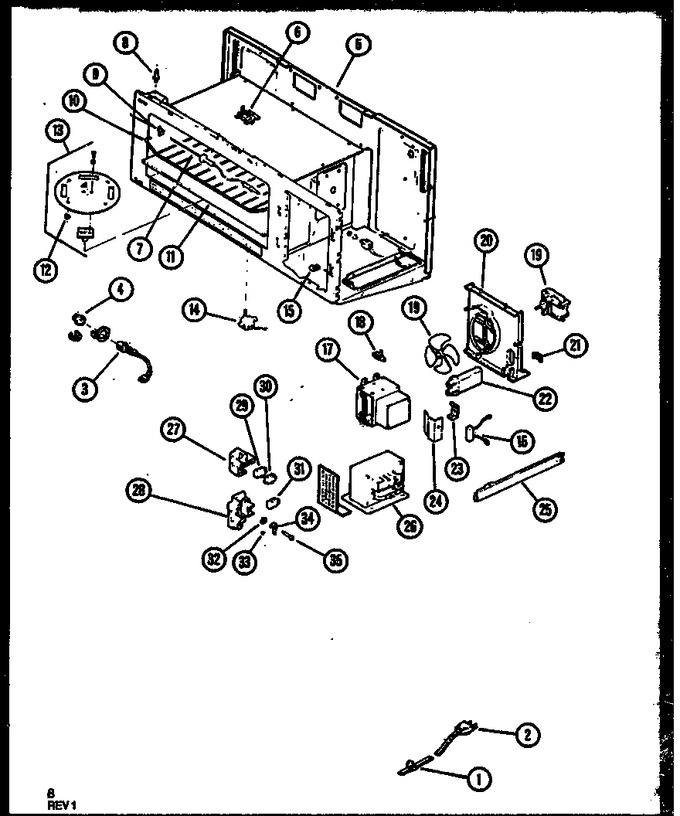

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0705953		Brkt, Power Cord		Appelez-nous	-
2	R0705023		Power Cord		Appelez-nous	-
3	R0710183		Key Panel Assy		Appelez-nous	-
4	R0710184		Key Panel Assy		Appelez-nous	-
5	R0703235		Back Cover		Appelez-nous	-
6	R0710179		Flame Sensor		Appelez-nous	-
7	R0710181		Probe		Appelez-nous	-
8	R0700079		Bolt, Flange M5x12		Appelez-nous	-
9	R0705899		Support, Rack		Appelez-nous	-
10	R0705971		Rack, Wire		Appelez-nous	-
11	R0703236		Bottom Tray Assy		Appelez-nous	-
12	R0701565		Space, Stirrer		Appelez-nous	-
13	YR0710180		Stirrer Assy		Appelez-nous	-
14	56001337		Motor, Stirrer   (Replaces: R0707011)				$ 156.84
15	R0701555		Cable Clamp		Appelez-nous	-
16	WP13091701		Rectifier   (Replaces: R0709506)				$ 33.29
17	WPW10126794		Magnetron   (Replaces: R0713502)				$ 296.33
18	R0711018		Thermostat, Switch		Appelez-nous	-
19	R0707012		Fan/motor Assy		Appelez-nous	-
20	R0705964		Fan Motor/ Blade Assembly		Appelez-nous	-
21	R0705965		Bracket, Fan Motor		Appelez-nous	-
22	R0711503		Capacitor .88 Mfd.		Appelez-nous	-
23	R0705966		Bracket Hv Capacitor		Appelez-nous	-
24	R0705895		Barrier Hv Trans		Appelez-nous	-
25	R0705898		Bracket Bridge Right		Appelez-nous	-
26	R0710502		H V Transformer		Appelez-nous	-
27	R0705882		Latch Body Upper		Appelez-nous	-
28	R0705881		Latch Body Lower		Appelez-nous	-
29	R0702547		Switch, Door		Appelez-nous	-
30	WP56001036		Switch, Primary   (Replaces: R0702548)				$ 78.58
31	R0702546		Switch, Monitor		Appelez-nous	-
32	R0701563		Support, Ring		Appelez-nous	-
33	R0705989		Spring, Latch Door		Appelez-nous	-
34	R0705986		Latch, Door Key		Appelez-nous	-
35	R0701564		Pan, Latch Door		Appelez-nous	-
