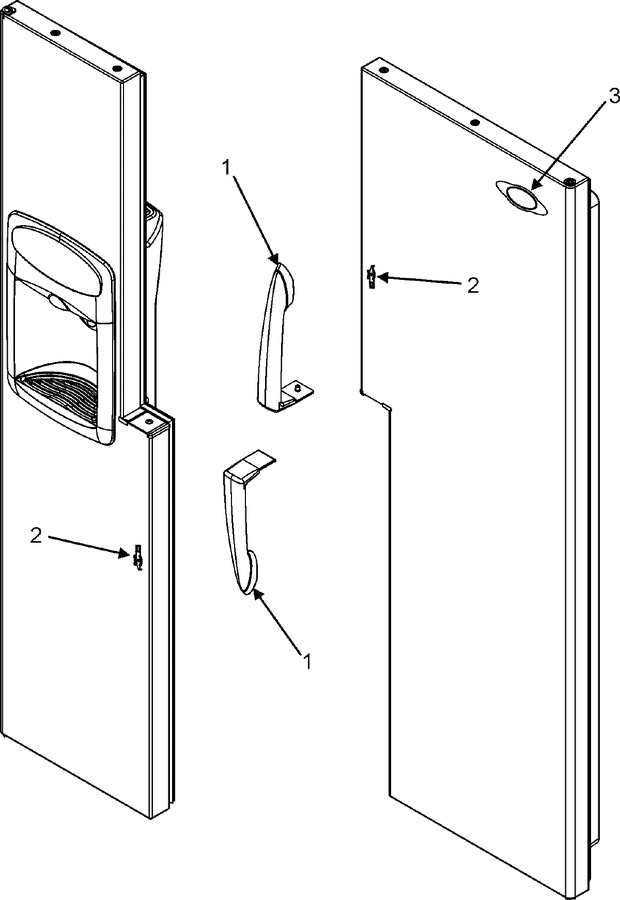

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67007028		Card, Handle Release	10			$ 11.10
1	67006988		Handle Assy., Door (wht)	10	Appelez-nous	-
2	WP7101P126-60		Screw, Sm   (Replaces: 67006669)	10		Immediately	$ 8.36
2	WP67006852		Clip, Handle Butterfly   (Replaces: 67003337)	10			$ 27.25
3	2324038		Nameplate   (Replaces: 67006439)	10			$ 71.59

    View Diagram in Separate Window       Print Part List
