SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

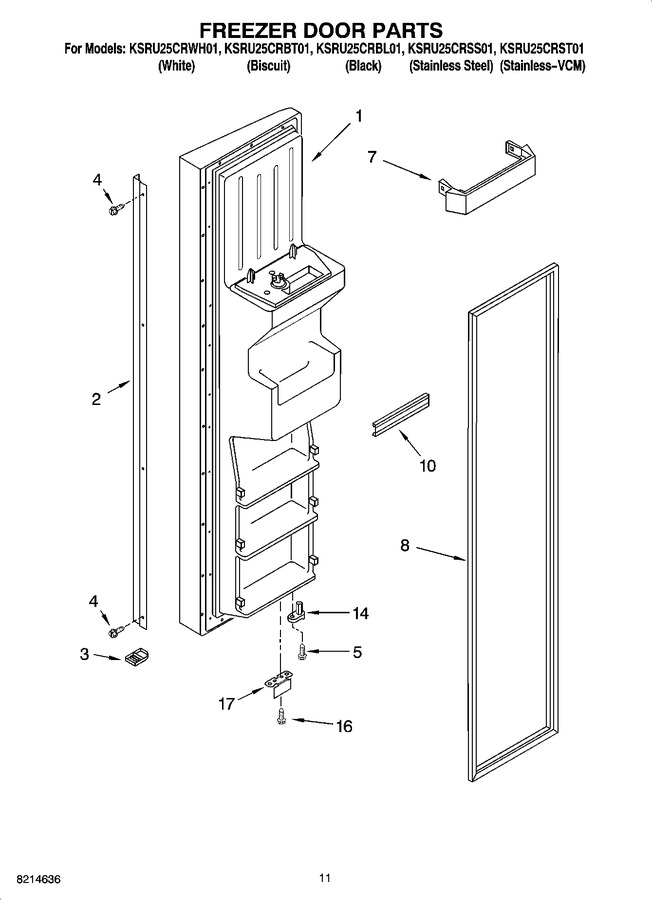

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2308303W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2308303T		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2308303B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2308303SB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2308303LB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
2	2220238B		Handle (black)		Appelez-nous	-
2	2220238S		Handle (stainless Steel)		Appelez-nous	-
2	2220238W		Handle (white)		Appelez-nous	-
2	2220238T		Handle (biscuit)		Appelez-nous	-
3	2207110T		Trim, Door-bottom (biscuit)		Appelez-nous	-
3	2207110B		Trim, Door-bottom (black)		Appelez-nous	-
3	2207110W		Trim, Door-bottom (white)		Appelez-nous	-
4	3400899		Screw (black)				$ 7.74
4	3400898		Screw (white)		Appelez-nous	-
4	8281135		Screw (biscuit)		Appelez-nous	-
4	3400897		Screw (stainless Steel)		Appelez-nous	-
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
7	2171070K		Shelf Bin (3)				$ 39.09
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2200082B		Bracket, Door Stop (black)				$ 42.44
17	2200082		Bracket, Door Stop (chrome)				$ 5.83

    View Diagram in Separate Window       Print Part List
