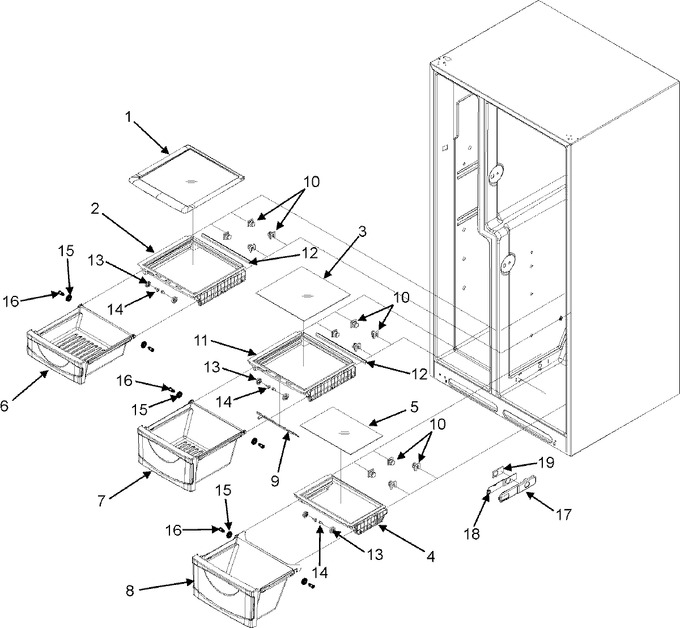

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004162		Shelf, Crisper Topx	10	Appelez-nous	-
2	67004077		Frame, Crisper Shelf	10	Appelez-nous	-
3	67004076		Glass, Crisper Shelf	10	Appelez-nous	-
4	67004163		Frame, Meat Shelf	10	Appelez-nous	-
5	67004164		Glass, Meat Shelf	10	Appelez-nous	-
6	67004997		Pan Assy., Sm Crisper	10	Appelez-nous	-
7	67004998		Pan Assy., Lg Crisper	10	Appelez-nous	-
8	67007036		Pan Assy., Meat	10	Appelez-nous	-
9	67004885		Slide, Control (wht)	10	Appelez-nous	-
10	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	10			$ 10.83
11	67005000		Frame, Lg Crisper Shelf	10	Appelez-nous	-
12	67004173		Seal, Crisper Frame (rear)	10	Appelez-nous	-
13	67004169		Roller, Crisper	10			$ 5.81
14	67006692		Screw	10			$ 10.79
15	67004133		Roller, Pan	10	Appelez-nous	-
16	67004174		Pin, Roller	10			$ 6.11
17	67004175		Housing, Temp. Control	10	Appelez-nous	-
18	67004176		Slide, Temp. Control	10	Appelez-nous	-
19	67004177		Gasket, Temp. Control	10	Appelez-nous	-
