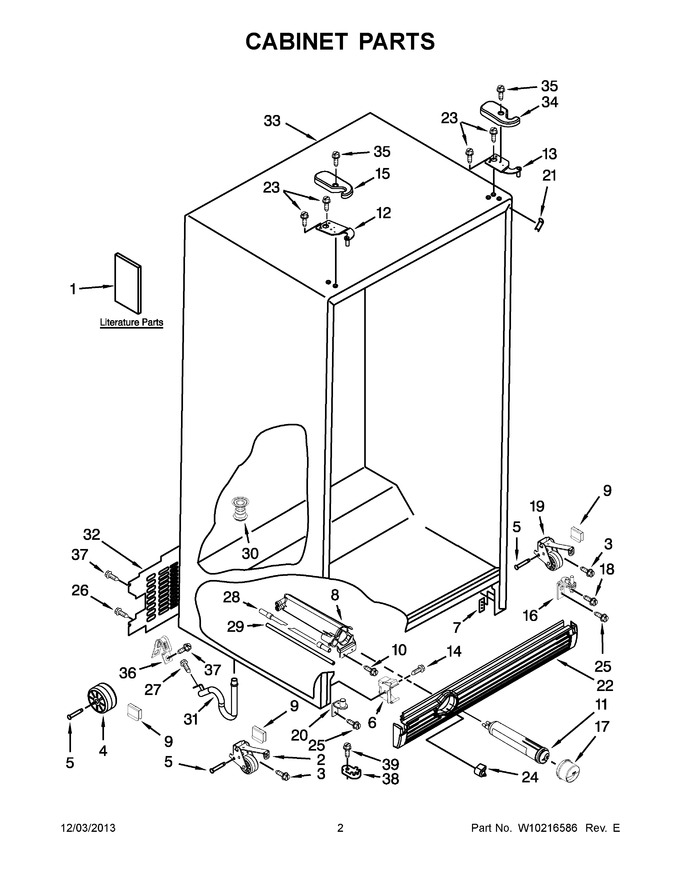

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10180857		Service And Wiring Sheet		Appelez-nous	-
1	W10180407		Door Removal Instruction Sheet		Appelez-nous	-
1	W10139598		Energy Guide		Appelez-nous	-
2	WPW10304660		Roller, Front (left)   (Replaces: W10304660)			Immediately	$ 70.38
3	W11544561		Screw   (Replaces: 2152958)				$ 14.05
4	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
5	W11594405		Axle, Roller   (Replaces: 2262072)			Immediately	$ 18.21
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 14.23
8	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 112.91
9	WP2174706		Clip-roller   (Replaces: 2174706)				$ 10.98
10	WP489500		Screw   (Replaces: 489500)				$ 7.78
11	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
12	W10287685		Assembly, Top Hinge (freezer)				$ 63.39
13	W10287684		Assembly, Top Hinge (refrigerator)				$ 46.69
14	WP489128		Screw   (Replaces: 488500)				$ 10.88
15	W10138577		Cover, Hinge (black)				$ 34.45
15	W10138578		Cover, Hinge (biscuit/bisque)		Appelez-nous	-
15	W10138576		Cover, Hinge (white)		Appelez-nous	-
15	W10138579		Cover, Hinge (grey)				$ 35.68
16	W10400807		Assembly, Bottom Hinge (refrigerator)				$ 34.47
17	2260502T		Cap, Water Filter (biscuit)		Appelez-nous	-
17	WP2260518MG		Cap, Water Filter (grey)   (Replaces: 2260502MG)				$ 56.03
17	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
17	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
18	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
19	WPW10304659		Roller, Front (right)   (Replaces: W10304659)			Immediately	$ 68.52
20	W10251418		Assembly, Bottom Hinge (freezer)				$ 63.50
21	W11252732		Filler, Corner (black)   (Replaces: W10283960)				$ 12.45
21	W10851579		Filler, Corner (grey)   (Replaces: W10283961)			Immediately	$ 7.19
21	W10283958		Filler, Corner (biscuit/bisque)				$ 24.41
21	WPW10283959		Filler, Corner (white)   (Replaces: W10283959)				$ 7.82
22	W10184882		Grille (grey)		Appelez-nous	-
22	WPW10283955		Grille (white)   (Replaces: W10184869)				$ 119.15
22	W10184881		Grille (biscuit/bisque)		Appelez-nous	-
22	W10184880		Grille (black)				$ 58.21
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
24	2260503MG		Button, Water Filter (grey)				$ 27.01
24	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
24	WP2260503B		Button, Water Filter (biscuit)   (Replaces: 2260503T)				$ 72.78
24	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
25	W10856122		Screw   (Replaces: 3400103)				$ 7.76
26	WP488488		Screw   (Replaces: 489290)				$ 7.68
27	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
28	8201597		Tube, Filter Inlet   (Replaces: 2319867)			Immediately	$ 77.02
29	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
30	W11566763		Fitting, Drain   (Replaces: 2304888)			Immediately	$ 50.90
31	W11512417		Extension, Drain Fitting   (Replaces: W10153550)				$ 34.79
32	WP2188756		Cover, Unit   (Replaces: 2188734)				$ 141.67
33	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
34	W10138581		Cover, Hinge (white)		Appelez-nous	-
34	W10138584		Cover, Hinge (grey)				$ 15.17
34	W10138582		Cover, Hinge (black)				$ 34.30
34	W10138583		Cover, Hinge (biscuit/bisque)		Appelez-nous	-
35	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
36	549193		Clamp, Power Cord				$ 13.39
37	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
38	W11778262		Closer, Freezer Door   (Replaces: 2223751)				$ 11.08
39	WP489483		Screw   (Replaces: 489483)				$ 10.87
