Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206102T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2206102B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2206102W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2194776B		Retainer, Insert (black)		Appelez-nous	-
2	2194776T		Retainer, Insert (biscuit)		Appelez-nous	-
2	2194776W		Retainer, Insert (white)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
6	2171071		Trivet, Shelf (4)		Appelez-nous	-
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159072		Door Gasket, Magnetic (repair) (mist Beige)				$ 323.60
8	2159080		Door Gasket, Magnetic (repair) (black)				$ 325.91
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2198272		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195950		Bracket, Door Stop				$ 5.84
15	2194778T		End Cap, Handle (biscuit)		Appelez-nous	-
15	2194778W		End Cap, Handle (white)		Appelez-nous	-
15	2194778B		End Cap, Handle (black)		Appelez-nous	-
17	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
18	2173830		Insert, Handle (white)		Appelez-nous	-
18	2173832		Insert, Handle (black)		Appelez-nous	-
18	2200434		Insert, Handle (biscuit)		Appelez-nous	-
22	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
23	WP2154473		Connector   (Replaces: 2154473)				$ 24.83

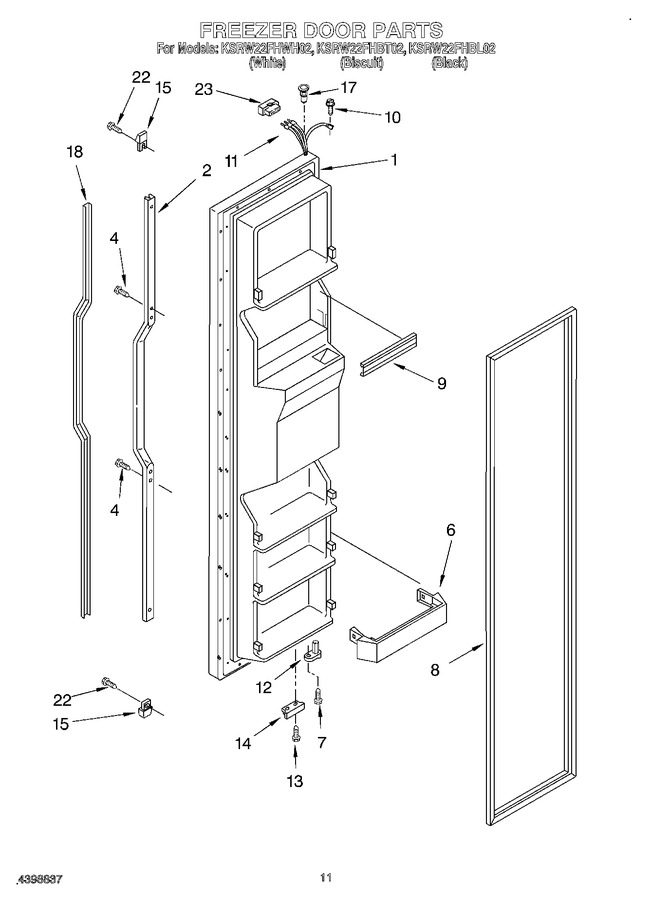

    View Diagram in Separate Window       Print Part List
