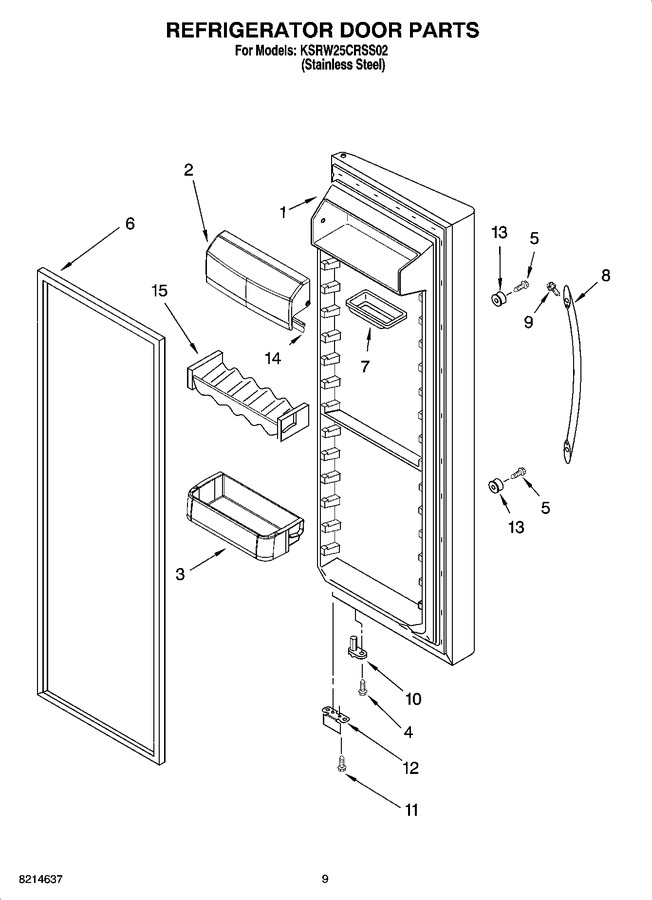

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2301168SE | Refrigerator Door (includes Item 6) (stainless) |
|
- | |||||
| 2 | 2301486 | Compartment Door |
|
- | |||||
| 3 | WP2223434K | Door Bin (4) (Replaces: 2223434K) |
|
Immediately | $ 97.22 | ||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 5 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 6 | 2159075 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221302) |
|
Immediately | $ 317.14 | ||||
| 7 | 2165792K | Butter Dish |
|
$ 9.72 | |||||
| 8 | 2255516SK | Handle (stainless) |
|
- | |||||
| 9 | 8533976 | Set Screw |
|
$ 8.35 | |||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 12 | 2200082 | Bracket, Door Stop (chrome) |
|
$ 5.83 | |||||
| 13 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 14 | 2159124 | Gasket |
|
- | |||||
| 15 | 2193409K | Beverage Holder (2) |
|
- |
