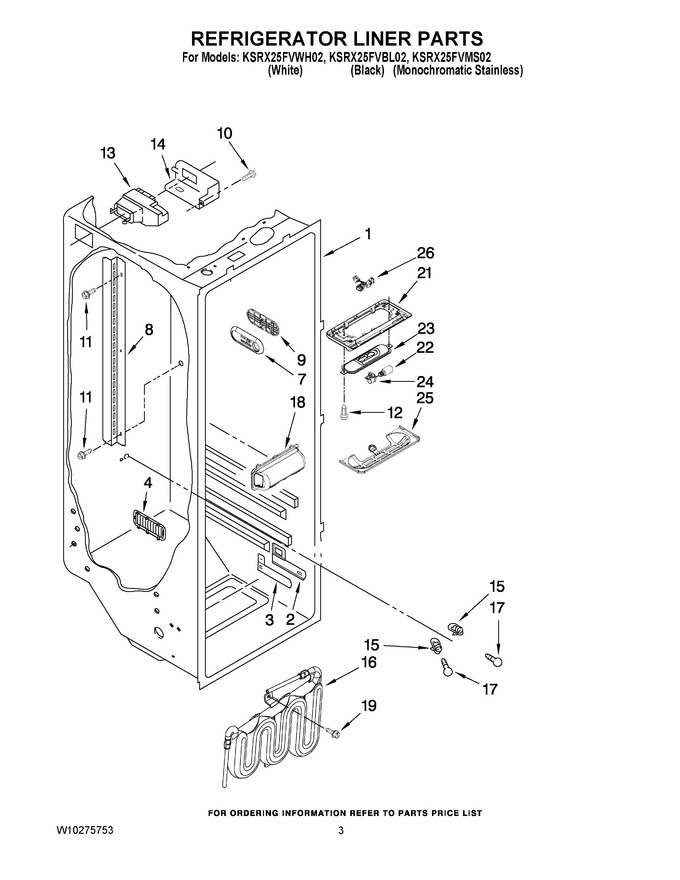

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
7	2301234		Housing, Door Control		Appelez-nous	-
8	2319866		Ladder, Shelf (2)				$ 22.16
9	2301235		Slide, Door Control		Appelez-nous	-
10	W10759522		Screw (2)   (Replaces: W10004810)				$ 7.75
11	WP489478		Screw   (Replaces: W10001260)				$ 7.75
12	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
13	W10899382		Air Diffuser Assembly   (Replaces: W10128734)			Immediately	$ 191.85
14	W10128735		Air Diffuser Cover		Appelez-nous	-
15	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
16	WPW10276792		Reservoir   (Replaces: 2307107)				$ 137.57
17	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 11.30
18	W11239891		Shield Assy, Light   (Replaces: W10242623)				$ 96.69
19	W10141518		Screw				$ 9.09
21	W10284481		Trim, Light   (Replaces: 2326209)		Appelez-nous	-
22	WPA3073101		Bulb, Light (2)   (Replaces: 2326255)			Immediately	$ 12.11
23	2223680		Shield, Heat				$ 89.07
24	WPW10191429		Socket, Light (2)   (Replaces: 2223857)				$ 8.38
25	2223506		Lens, Light				$ 47.17
26	2310527		Wire Assy, Light		Appelez-nous	-
