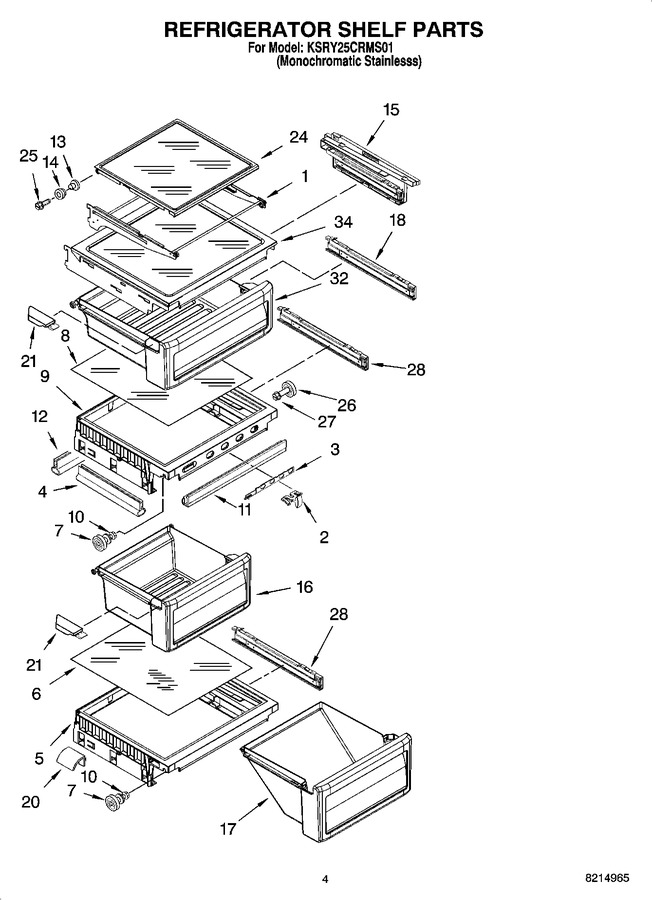

Diagram #	Part Number	Description	Availability	Ships	Price
1	2301072	Shelf Assembly, Cantilever (2)	Appelez-nous	-
2	2301025	Knob, Humidity			$ 74.39
3	2301026	Slide, Humidity	Appelez-nous	-
4	2301117	Gasket, Side (2)			$ 143.37
5	2301568	Cover, Meat Pan (includes 20 & 28)	Appelez-nous	-
6	2301028	Glass, Meat Pan Cover			$ 85.17
7	W11223328	Stud Assembly (Replaces: 2196485)		Immediately	$ 14.77
8	2301027	Glass, Crisper Cover	Appelez-nous	-
9	2301567	Cover, Crisper (includes 2, 3, 4, 11, 12 & 28)			$ 237.90
10	WP3-24004-109	Screw (Replaces: 3400894)			$ 9.14
11	WP1125528	Gasket, Front (Replaces: 2301116)			$ 161.69
12	2301115	Gasket, Rear	Appelez-nous	-
13	2174478	Eyelet, Roller			$ 5.70
14	2188212	Roller	Appelez-nous	-
15	2301570	Support Assembly (left Side)			$ 125.92
15	2301569	Support Assembly (right Side)			$ 118.73
16	W10916292	Crisper Pan (includes 21) (Replaces: 2301031)			$ 209.16
17	2301022	Meat Pan	Appelez-nous	-
18	2301551	Glide Assembly (snack Pan) (left Side)			$ 239.42
18	2301550	Glide Assembly (snack Pan) (right Side)			$ 150.39
20	2301126	Deflector	Appelez-nous	-
21	2301016	Cap, Crisper Pan (right Side)	Appelez-nous	-
21	2301017	Cap, Crisper Pan (left Side)	Appelez-nous	-
24	2301084	Shelf & Roller Assembly (2)			$ 116.51
25	489439	Screw	Appelez-nous	-
26	WP2196483	Stud Assembly (Replaces: 2196483)			$ 10.87
27	WP3400806	Screw (Replaces: 8281158)			$ 8.10
28	2301549	Glide Asm, Pan (left Side)			$ 123.81
28	2301548	Glide Asm, Pan (right Side)			$ 224.83
32	2301023	Snack, Pan (includes Item 21)	Appelez-nous	-
34	2301566	Shelf, Snack Pan (includes 15)			$ 151.83
