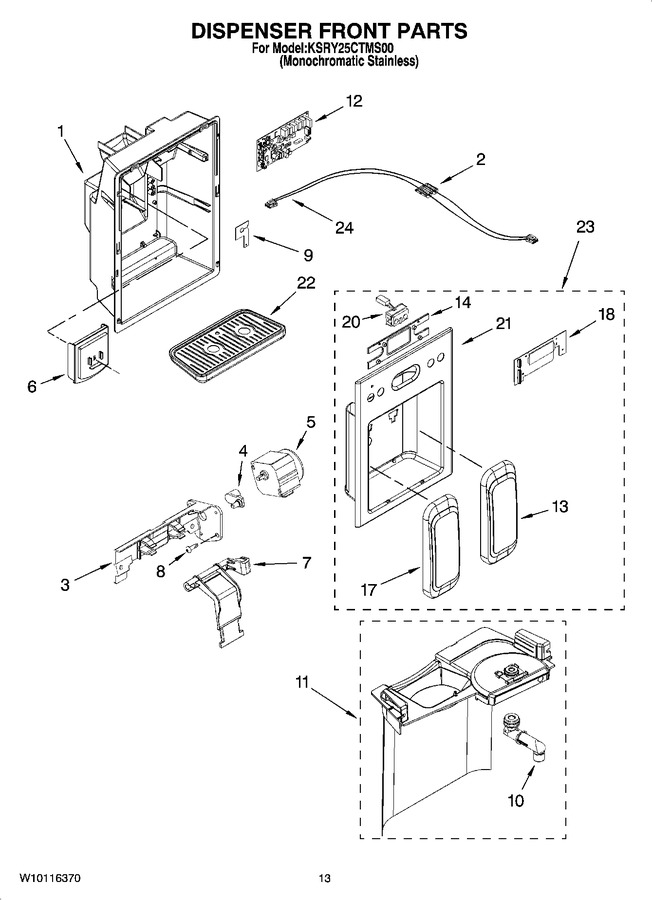

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2308165		Ferrite Bead		Appelez-nous	-
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 101.60
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 101.82
5	WPW10184813		Motor, Ice Door   (Replaces: 2305262)			Immediately	$ 108.33
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 26.09
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 92.63
8	WP4449745		Screw (2)   (Replaces: 4449745)				$ 7.98
9	2305447		Clip, Wiring		Appelez-nous	-
10	2305236		Spigot		Appelez-nous	-
11	2305461		Seperator Assembly		Appelez-nous	-
12	WP2303843		Electronic Cover (2) Control (core)   (Replaces: 2303843)				$ 365.39
13	W10133606		Pad, Water (for Monochromatic Stainless Model)   (Replaces: 2305307AS)				$ 335.00
14	2305343		Lens, Front Cover		Appelez-nous	-
17	W10133606		Pad, Ice (for Monochromatic Stainless Model)   (Replaces: 2305306AS)				$ 335.00
18	WP2321746		Cover, Electronic Control   (Replaces: 2304140)			Immediately	$ 318.84
20	2303841		Led Assembly		Appelez-nous	-
22	2315110US		Drip Tray Assembly (universal Silver)		Appelez-nous	-
23	2318906US		Front Cover Assembly (includes Items 14, 17, 18, 20, & 21) (universal Silver)				$ 437.91
24	2187814		Wire Assembly, User Interface (includes 2)				$ 35.21
