SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

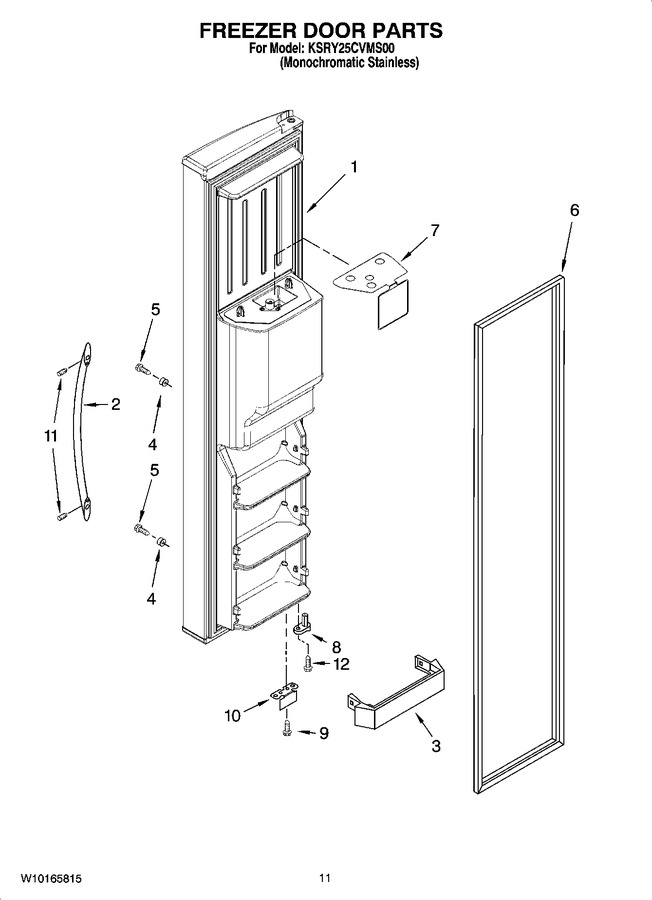

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2318905SAP		Freezer Door (includes 6 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
2	2304832S		Handle (stainless Steel)				$ 131.26
3	2223559K		Trivet (3)		Appelez-nous	-
4	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 9.66
5	WP488163		Screw   (Replaces: 488208)				$ 7.92
6	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 315.51
7	2304895		Safety Barrier		Appelez-nous	-
8	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 21.16
9	WP489483		Screw   (Replaces: 489420)				$ 11.41
10	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
11	W11366418		Screw (chrome)   (Replaces: W10010140)			Immediately	$ 18.43
12	2305405		Tube, Water Dispenser		Appelez-nous	-
12	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
12	2310084		Wire Assembly, Freezer Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
