01 - Color Variation Parts

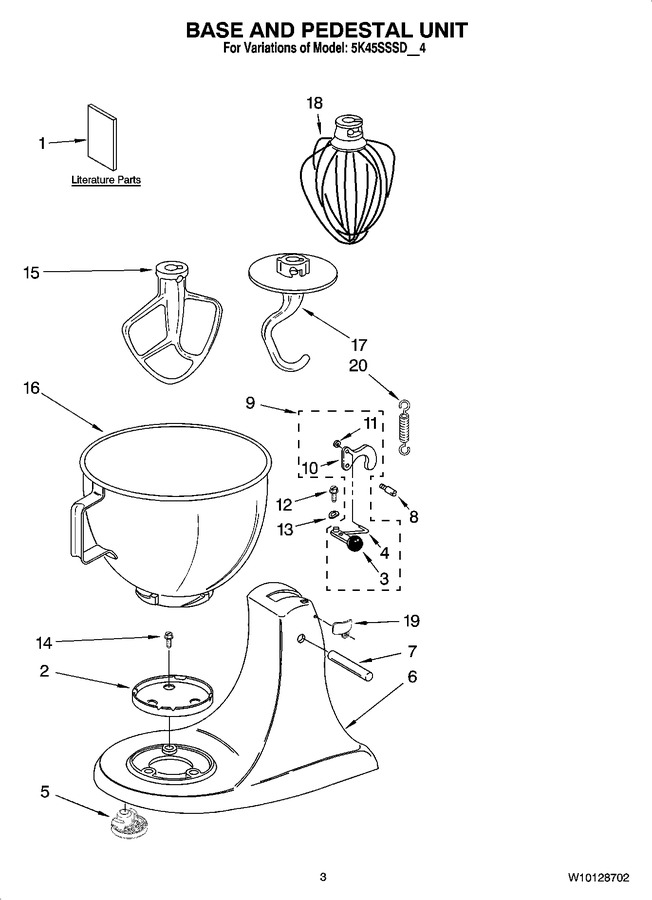

02 - Base And Pedestal Unit
03 - Case, Gearing And Planetary Unit
04 - Motor And Control Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9709851 | Use & Care Guide |
|
- | |||||
| 1 | W10128702 | Literature (repair Parts List) |
|
- | |||||
| 2 | WPW10191926 | Screw Cap Kit (Replaces: 4162529) |
|
Immediately | $ 19.03 | ||||
| 3 | WP9709267 | Lever, Latch (Replaces: 9709267) |
|
$ 4.00 | |||||
| 4 | W11232016 | Link, Latch (Replaces: 24450) |
|
$ 7.83 | |||||
| 5 | WP9709707 | Foot (Replaces: 9709707) |
|
Immediately | $ 4.42 | ||||
| 7 | WP16910 | Pin, Hinge (Replaces: 16910) |
|
Immediately | $ 4.87 | ||||
| 8 | 103993 | Screw, Latch Bearing |
|
$ 24.95 | |||||
| 9 | WP3184200 | Latch, Link & Lever Assembly (Replaces: 3184200) |
|
$ 13.44 | |||||
| 10 | W11246352 | Latch (Replaces: 9709055) |
|
$ 8.57 | |||||
| 11 | W11218705 | Washer (Replaces: 8533912) |
|
$ 4.55 | |||||
| 12 | 6011-006971 | Screw (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 13 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 14 | W11544572 | Screw (Replaces: 3400020) |
|
$ 8.41 | |||||
| 15 | WPW10672617 | Beater, Flat (Replaces: 9708470) |
|
Immediately | $ 24.92 | ||||
| 16 | W10802058 | Bowl And Base (4 1/2 Qt.) (Replaces: 242550-2) |
|
$ 103.12 | |||||
| 17 | WPW10674618 | Dough Hook (Replaces: 9708471) |
|
Immediately | $ 31.90 | ||||
| 18 | WP9704329 | Wire Whip (Replaces: 9706446) |
|
Immediately | $ 29.90 | ||||
| 19 | WP3184264 | Head Lock (white) (Replaces: 3184262) |
|
$ 8.20 | |||||
| 20 | W11188450 | Spring, Lock Lever (Replaces: 3183690) |
|
- |
