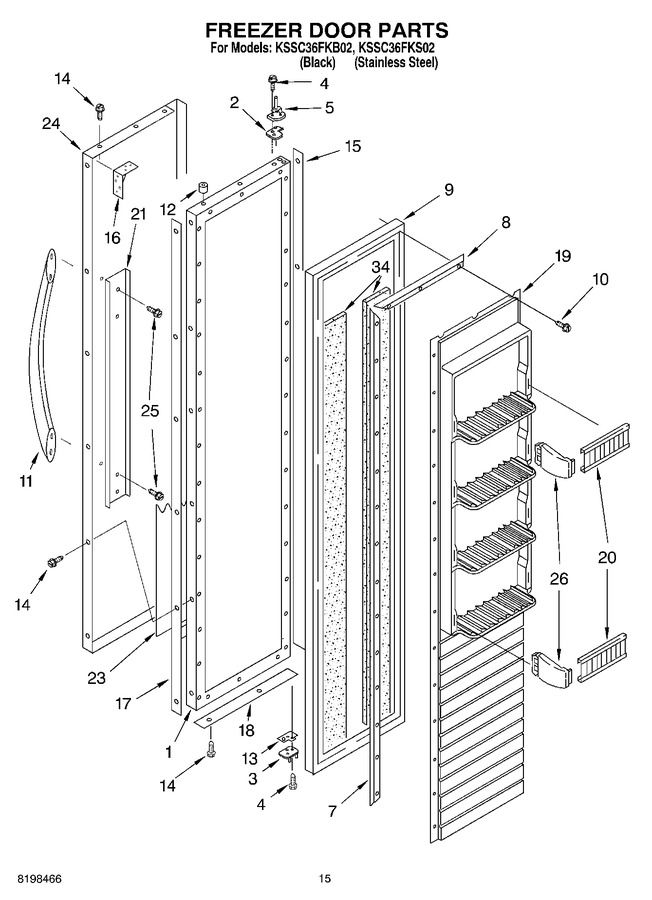

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259162 | Freezer Door Panel (includes Insulation) |
|
- | |||||
| 2 | 2256381 | Spacer-door, Top |
|
$ 24.49 | |||||
| 3 | W11752085 | Hinge, Bottom (Replaces: 2256390) |
|
$ 63.07 | |||||
| 4 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 5 | W11724512 | Hinge, Top (Replaces: 2266854) |
|
$ 312.50 | |||||
| 7 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 8 | 1112538 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 9 | 2188495 | Door Gasket, Magnetic |
|
- | |||||
| 10 | W11624204 | Screw (34) (Replaces: 486194) |
|
$ 14.72 | |||||
| 11 | 2209095B | Handle, Door (black) |
|
- | |||||
| 11 | 2005290 | Handle, Door (stainless Steel) |
|
$ 130.36 | |||||
| 12 | 2005433 | Spacer, Top |
|
$ 23.33 | |||||
| 13 | 2257637 | Door, Spacer |
|
$ 15.45 | |||||
| 14 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 14 | WP8281250 | Screw Stainless Steel (Replaces: 8281250) |
|
$ 11.42 | |||||
| 15 | 2005030 | Spacer, Hinge Side |
|
- | |||||
| 16 | 2258951 | Door Brace, Corner |
|
$ 33.35 | |||||
| 17 | 2221012 | Spacer, Handle Side |
|
- | |||||
| 18 | 2004931 | Spacer, Door Skin Bottom |
|
- | |||||
| 19 | 2209030 | Interior Door Panel |
|
- | |||||
| 20 | 2209163 | Trim-shelf, Door |
|
- | |||||
| 21 | 2209202 | Plate, Door Handle |
|
- | |||||
| 23 | 2005324 | Filler, Door |
|
- | |||||
| 24 | 2209097B | Door Skin (black) |
|
- | |||||
| 24 | 2006774 | Door Skin (stainless Steel) |
|
- | |||||
| 25 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 26 | 2209134 | Trim, End Cap (right Side) |
|
$ 10.05 | |||||
| 26 | 2208954 | Trim, Endcap (left Side) |
|
$ 5.84 | |||||
| 34 | 2005610 | Seal |
|
- |
