SELECT A DIAGRAM

01 - Color Variation Parts


02 - Base And Pedestal Unit


03 - Case, Gearing And Planetary Unit

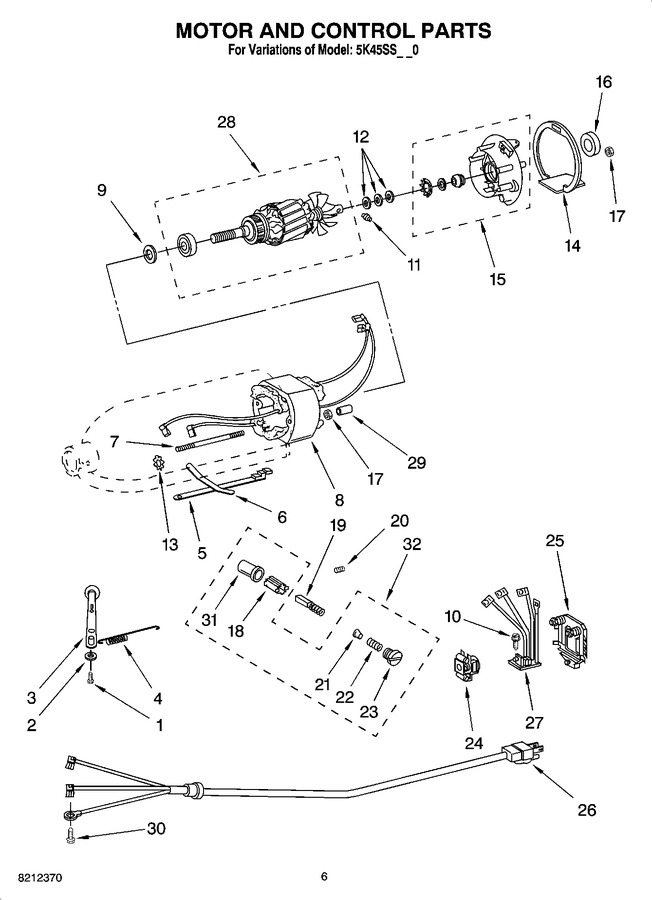

04 - Motor And Control Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	6011-006971		Screw, Pivot   (Replaces: 110679)			Immediately	$ 3.59
2	WP116241		Washer, Spring   (Replaces: 116241)				$ 5.19
3	WP9709276		Switch Lever And Stud   (Replaces: 9709276)			Immediately	$ 5.32
4	WP3183680		Spring, Control Plate   (Replaces: 3183680)				$ 4.79
5	W11557271		Speed Link & Cam   (Replaces: 3184176)			Immediately	$ 8.47
6	WP240205		Spring, Flat   (Replaces: 240205)				$ 4.99
7	W10851015		Screw, Stator   (Replaces: 240769)				$ 4.30
8	WPW10417246		Field Assembly   (Replaces: 9701670)				$ 48.47
9	WP9704324		Washer, Ball Bearing (front)   (Replaces: 9704324)				$ 4.72
10	W11084238		Screw   (Replaces: W10068260)		Appelez-nous	-
11	WP16998		Stud, Governor Drive   (Replaces: 16998)				$ 4.82
12	W11233557		Washer, Spacing   (Replaces: 3180162)				$ 8.13
13	W11170663		Washer   (Replaces: W10068270)				$ 4.54
14	WP240775-1		Seal, End   (Replaces: 3184356)			Immediately	$ 5.12
15	WP3180526		Bracket, Bearing Asm.   (Replaces: 3180526)				$ 20.80
16	3180238		Washer		Appelez-nous	-
17	8533905		Nut, Machine				$ 26.90
18	W11656718		Insert, Brush Holder   (Replaces: 240680)				$ 5.22
19	WPW10380496		Brush, Carbon   (Replaces: 9706416)			Immediately	$ 4.25
20	W11176201		Screw, Set   (Replaces: 9707926)				$ 4.75
21	WP116286		Cap, Spring Seat   (Replaces: 116286)				$ 4.77
22	WP116287		Spring, Cap   (Replaces: 116287)				$ 4.84
23	WP3184212		Cap, Brush Holder (black)   (Replaces: 3184212)			Immediately	$ 4.79
24	WPW10330804		Governor Assembly   (Replaces: 17830)			Immediately	$ 16.39
25	WPW10119326		Control Plate Assembly   (Replaces: 240904-2)			Immediately	$ 17.43
26	W10908276		Cord, Power (white (uk))   (Replaces: 9702314)		Appelez-nous	-
26	W11112762		Cord, Power (white (european))   (Replaces: 9702318)				$ 17.96
27	W11174552		Board, Phase Control   (Replaces: 9706596)				$ 16.31
28	W10900799		Armature & Bearng Assy (240v)   (Replaces: 9708316)				$ 71.82
29	W11210996		Sleeve, Motor Stud   (Replaces: 4162634)		Appelez-nous	-
30	WP4159193		Screw   (Replaces: 3184086)				$ 5.07
31	WP3179908		Housing, Brush Holder   (Replaces: 3179908)				$ 4.35
32	4162546		Brush Holder Assembly				$ 23.37
	4164778		Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs-a), (fpp-a))		Appelez-nous	-
	W11312468		Pouring Shield (international)   (Replaces: 4176452)				$ 43.26
	4164768		Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a)		Appelez-nous	-
	8211924		Grain Mill, Kgma		Appelez-nous	-
	4164749		Food Grinder (fg-a)		Appelez-nous	-
	4164748		Juicer, Je		Appelez-nous	-
	4162838		Food Tray (ft)		Appelez-nous	-
	3180617		Cover, Decorative (cotton Polyester)		Appelez-nous	-
	4164774		Fruit/vegetable Strainer And Food Grinder, Fvs/fga		Appelez-nous	-
	4164824		Pasta Maker Plates Snpa		Appelez-nous	-
	W11312468		Pouring Shield (kps2cl)   (Replaces: 3177975)				$ 43.26
	RVSA		Rotor Slicer/shredder(with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin Slicer (rvsa)   (Replaces: 4164750)				$ 115.50
	9707963		Ice Cream Maker (kica)		Appelez-nous	-
	W10802058		Bowl, Satin Stainless   (Replaces: 4162160)				$ 103.12
	3180262		Bowl, 3 Qt.				$ 68.75
	W10802058		Bowl, Stainless With Handle   (Replaces: 4163337)				$ 103.12
	3177924		Bowl Cover, Plastic Non-sealing		Appelez-nous	-
	4164803		Sausage Stuffer, Kit, Ssa		Appelez-nous	-
	4164747		Can Opener, Co		Appelez-nous	-
	FVSP		Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp)   (Replaces: 4164775)				$ 117.81
