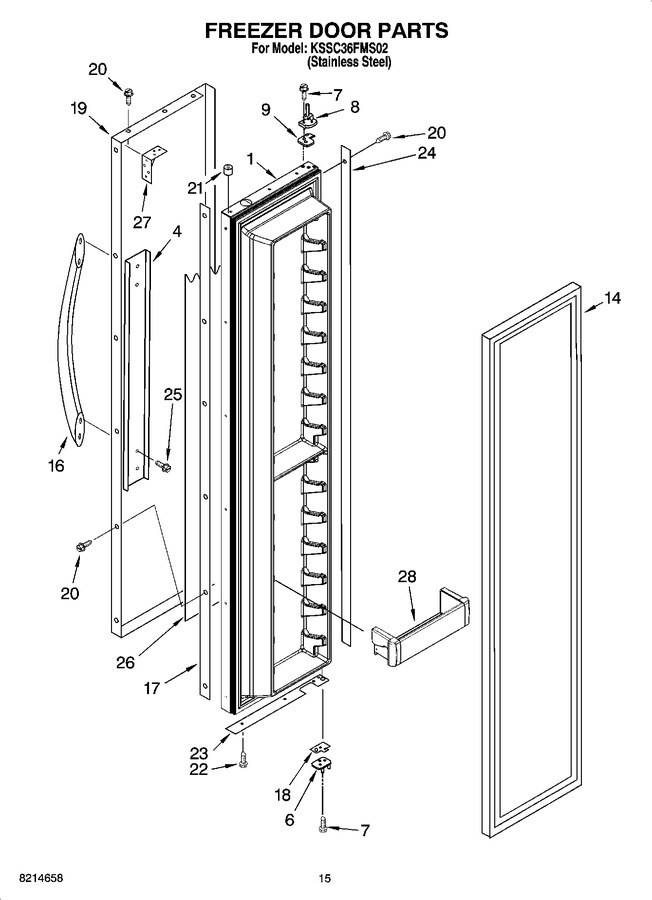

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252326		Freezer Door Panel (includes Insulation)		Appelez-nous	-
4	2306398		Plate, Door-handle		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
14	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
16	2005290		Handle, Door				$ 130.36
17	2309056		Spacer, Door-skin (handle Side)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
19	2306159		Skin, Door		Appelez-nous	-
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
21	2005433		Spacer, Door-skin (top)				$ 23.33
22	W10759522		Screw   (Replaces: 488568)				$ 8.24
23	2004931		Spacer, Door Skin Bottom		Appelez-nous	-
24	2005030		Spacer, Door-skin (hinge Side)		Appelez-nous	-
25	WP308544		Screw, Handle   (Replaces: 308544)			Immediately	$ 8.30
26	2005324		Filler, Door		Appelez-nous	-
27	2258951		Brace, Door-corner				$ 33.35
28	W10323601		Bin, Shelf   (Replaces: 2222775)				$ 92.19
