01 - Color Variation Parts
02 - Base And Pedestal Unit

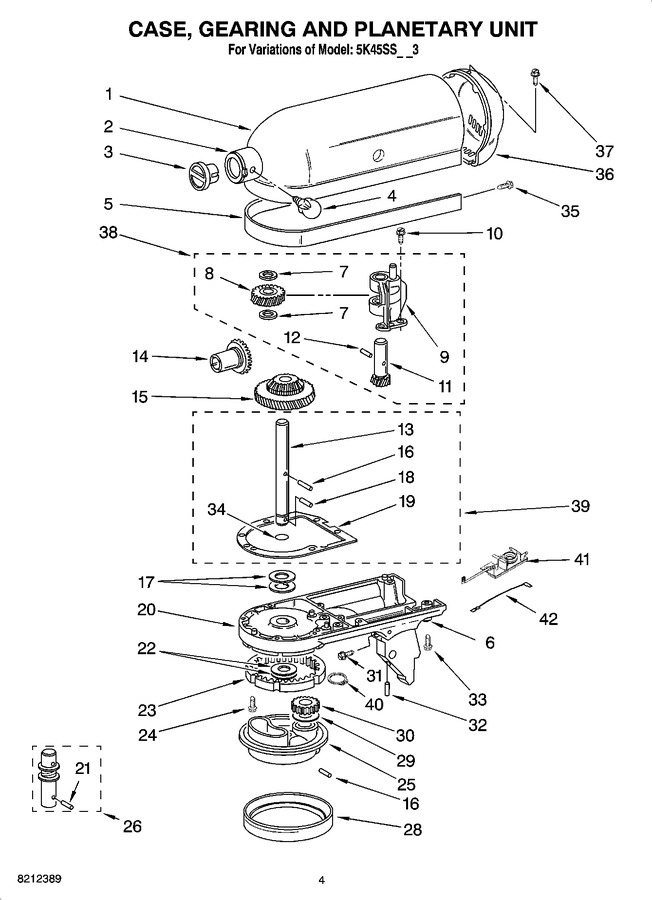

03 - Case, Gearing And Planetary Unit
04 - Motor And Control Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP16897 | Ring, Attachment Hub (Replaces: 16897) |
|
Immediately | $ 5.10 | ||||
| 3 | W11831059 | Cap, Attachemnt Hub (Replaces: 242765-2) |
|
Immediately | $ 15.12 | ||||
| 4 | WP9709194 | Thumb Screw (Replaces: 9709194) |
|
Immediately | $ 20.14 | ||||
| 6 | WP8533914 | Lock Washer (Replaces: 8533914) |
|
Immediately | $ 4.72 | ||||
| 7 | WPW10323373 | Washer, Shim (Replaces: 3180161) |
|
Immediately | $ 4.72 | ||||
| 8 | WPW10112253 | Worm Gear (Replaces: 4162897) |
|
Immediately | $ 13.47 | ||||
| 9 | W11082541 | Worm Gear Bracket And Bearing (Replaces: 240308) |
|
$ 14.78 | |||||
| 10 | W11097298 | Screw (Replaces: 3400022) |
|
- | |||||
| 11 | WP240210-2 | Gear, Shaft And Pinion (Replaces: 240210-2) |
|
Immediately | $ 11.88 | ||||
| 12 | WP9705444 | Pin (worm Gear) (Replaces: 9705444) |
|
Immediately | $ 4.84 | ||||
| 13 | WP240026 | Shaft, Vertical Center (Replaces: 240026) |
|
Immediately | $ 9.14 | ||||
| 14 | W11192794 | Gear, Attachment Hub Bevel (Replaces: 9705130) |
|
Immediately | $ 40.69 | ||||
| 15 | W11192794 | Bevel Pinion Center Gear (Replaces: 9709627) |
|
Immediately | $ 40.69 | ||||
| 16 | WP9707223 | Pin (vertical Center Shaft) (Replaces: 240018-1) |
|
Immediately | $ 5.08 | ||||
| 17 | WPW10323378 | Washer, Fiber (Replaces: 3180163) |
|
Immediately | $ 10.83 | ||||
| 18 | W11762673 | Pin, Groove (Replaces: 9705443) |
|
Immediately | $ 4.25 | ||||
| 19 | W11805888 | Gasket, Transmission Case (Replaces: 4162324) |
|
Immediately | $ 46.84 | ||||
| 21 | W11664709 | Pin, Groove (Replaces: 9704677) |
|
Immediately | $ 6.75 | ||||
| 22 | WPW10323378 | Washer, Fiber (Replaces: 3180163) |
|
Immediately | $ 10.83 | ||||
| 23 | W11340106 | Gear, Internal (Replaces: 9703904) |
|
$ 18.56 | |||||
| 24 | VT9 | Screw, Special (Replaces: 103994) |
|
$ 37.35 | |||||
| 26 | WP243368 | Agitator Shaft Assembly (Replaces: 3184052) |
|
Immediately | $ 17.29 | ||||
| 28 | WP240285 | Ring, Planetary Drip (Replaces: 240285) |
|
Immediately | $ 9.06 | ||||
| 29 | WP9706090 | Washer, Shim (Replaces: 9706090) |
|
$ 5.04 | |||||
| 30 | W11133645 | Pinion, Gear (Replaces: 9703903) |
|
$ 4.92 | |||||
| 31 | W11028216 | Screw (Replaces: 89411) |
|
$ 5.22 | |||||
| 32 | WP3400203 | Screw, Set (Replaces: 3400203) |
|
Immediately | $ 5.04 | ||||
| 33 | WP3400025 | Screw (Replaces: 3400025) |
|
$ 4.62 | |||||
| 34 | WP67500-55 | O-ring (Replaces: 67500-55) |
|
Immediately | $ 4.52 | ||||
| 35 | WP313808 | Screw, Self Tapping (Replaces: 311932) |
|
$ 8.30 | |||||
| 37 | WP241877 | Screw (Replaces: 4162914) |
|
$ 4.15 | |||||
| 38 | WP240309-2 | Worm & Pinion Gears Assembly (Replaces: 240309-2) |
|
Immediately | $ 39.53 | ||||
| 39 | 4160474 | Center Shaft & ``o`` Ring |
|
$ 28.53 | |||||
| 40 | WP9703438 | Ring (Replaces: 9703438) |
|
Immediately | $ 4.60 | ||||
| 41 | 4176340 | Rfi Filter (Replaces: 9705132) |
|
- | |||||
| 42 | 9702311 | Lead, Filter (to Control Board) |
|
- |
