| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
2222591 |
|
Shelf Assembly |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W10777924 |
 |
Rack, Wine (Replaces: 2179375) |
|
|
|
$ 24.78 |
|
|
| 3 |
2302841 |
|
Assembly, Meat Pan Cover |
|
Appelez-nous
|
- |
|
|
|
| 4 |
2302834 |
|
Assembly, Crisper Cover |
|
Appelez-nous
|
- |
|
|
|
| 5 |
2257581 |
|
Trim, Meat Pan Rear Glass |
|
Appelez-nous
|
- |
|
|
|
| 6 |
W10407623 |
|
Assembly, Crisper Pan (Replaces: 2252411) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
2302954 |
|
Slide, Meat Pan (left Hand) (Replaces: W10267073) |
|
|
|
$ 343.49 |
|
|
| 7 |
2302955 |
|
Slide, Meat Pan (right Hand) (Replaces: W10267075) |
|
|
|
$ 343.18 |
|
|
| 8 |
N/P |
|
Trim, Glass Front (not Serviceable) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
2256253 |
|
Trim, Crisper Rear Glass |
|
Appelez-nous
|
- |
|
|
|
| 10 |
WP2256247 |
|
Front, Crisper Pan (Replaces: 2256247) |
|
|
|
$ 133.22 |
|
|
| 11 |
2252255 |
|
Trim, Side Glass Crisper |
|
Appelez-nous
|
- |
|
|
|
| 12 |
2256250 |
|
Trim, Side Glass Meat Pan |
|
Appelez-nous
|
- |
|
|
|
| 13 |
2256222 |
|
Spacer, Crisper (right Hand) |
|
|
|
$ 89.24 |
|
|
| 13 |
2256223 |
|
Spacer, Crisper (left Hand) |
|
|
|
$ 84.49 |
|
|
| 14 |
2302956 |
|
Slide, Crisper (left Hand) (Replaces: W10266848) |
|
|
|
$ 298.73 |
|
|
| 14 |
2302957 |
|
Slide, Crisper (right Hand) (Replaces: W10266850) |
|
|
|
$ 228.33 |
|
|
| 15 |
2256244 |
|
Spacer, Meat Pan (right Hand) |
|
|
|
$ 103.70 |
|
|
| 15 |
2256243 |
|
Spacer, Meat Pan (left Hand) |
|
|
|
$ 83.04 |
|
|
| 16 |
W11830745 |
|
Screw (stainless) (Replaces: 8533929) |
|
Appelez-nous
|
- |
|
|
|
| 17 |
W10407626 |
|
Assembly, Meat Pan (Replaces: 2256368) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
WP2256365 |
|
Assembly, Meat Pan Front (Replaces: 2256365) |
|
|
|
$ 173.51 |
|
|
| 19 |
2257611 |
|
Trim, Meat Pan Side Glass |
|
Appelez-nous
|
- |
|
|
|

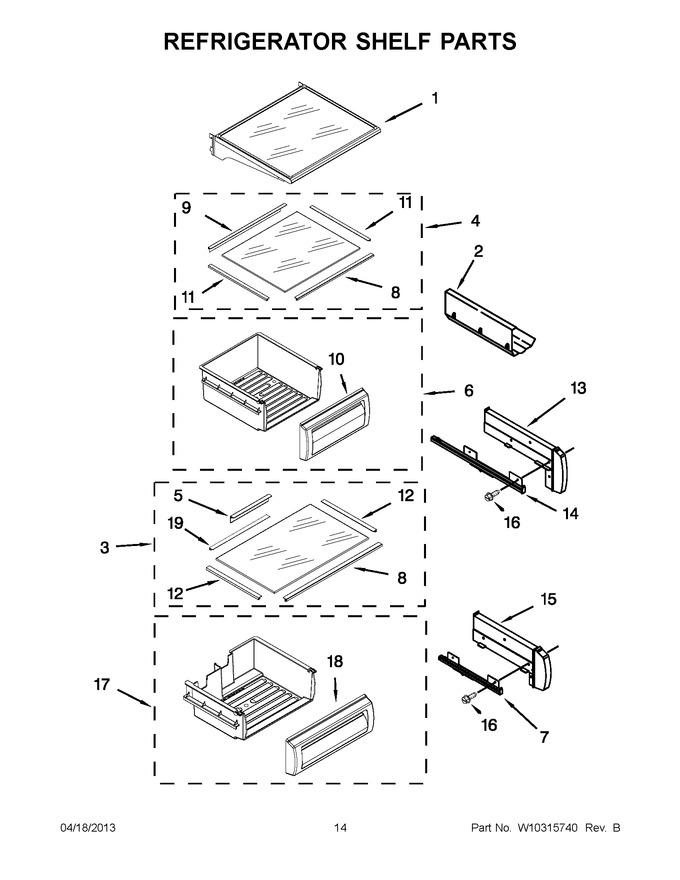

View Diagram in Separate Window
