SELECT A DIAGRAM
01 - Color Variation Parts

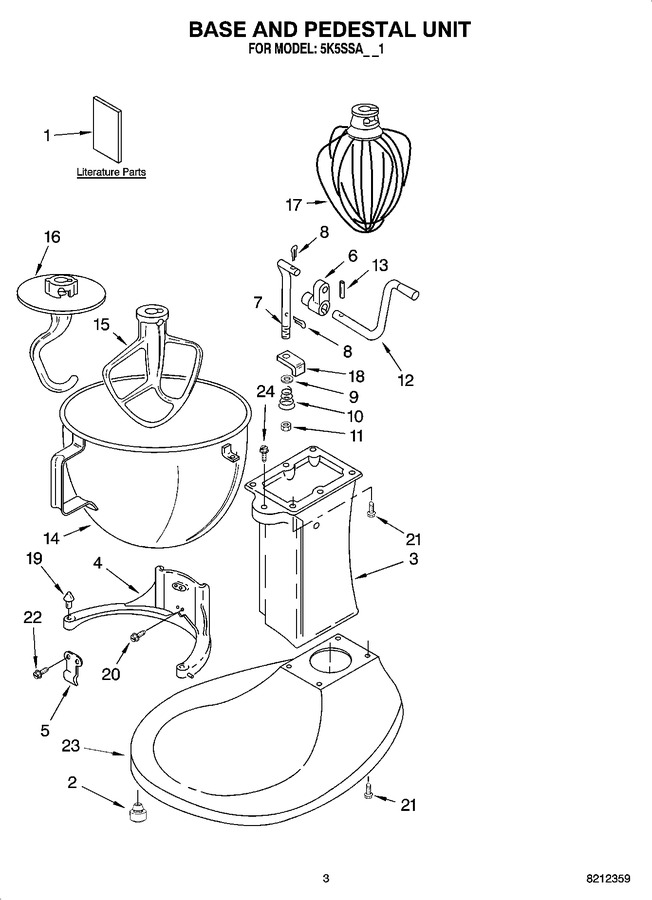

02 - Base And Pedestal Unit
03 - Case, Gearing And Planetary Unit
04 - Motor And Control Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8212359 | Repair Parts List |
|
- | |||||
| 1 | 9705170 | Use & Care Guide European |
|
- | |||||
| 2 | WP9708649 | Foot, Rubber (Replaces: 9708649) |
|
Immediately | $ 4.79 | ||||
| 5 | WP3182857 | Latch, Bowl Spring (Replaces: 3182857) |
|
Immediately | $ 5.29 | ||||
| 6 | WP241764 | Arm, Bowl Lift (Replaces: 241764) |
|
Immediately | $ 8.57 | ||||
| 7 | W10598834 | Rod, Bowl Lift (Replaces: 4159620) |
|
$ 29.90 | |||||
| 8 | WP9704608 | Pin, Cotter (Replaces: 9704608) |
|
$ 4.37 | |||||
| 9 | W11708396 | Washer (Replaces: 4159514) |
|
$ 4.60 | |||||
| 10 | 4159622 | Spring |
|
Immediately | $ 4.70 | ||||
| 11 | 8533907 | Nut |
|
$ 24.83 | |||||
| 12 | W11812045 | Handle, Bowl Lift (Replaces: 4159615) |
|
$ 10.85 | |||||
| 13 | WP9703442 | Roll Pin (Replaces: 9703442) |
|
$ 4.28 | |||||
| 14 | W10802050 | Bowl (5 Qt) (Replaces: 4162116) |
|
$ 122.88 | |||||
| 15 | W10807813 | Beater, Flat (Replaces: 9707670) |
|
Immediately | $ 32.13 | ||||
| 16 | WPW10674621 | Hook, Dough (Replaces: 9707672) |
|
$ 51.22 | |||||
| 17 | WPW10731415 | Whip-wire (Replaces: 9704309) |
|
Immediately | $ 37.93 | ||||
| 18 | W11794323 | Bracket, Bowl Lift (Replaces: 4162022) |
|
$ 5.43 | |||||
| 19 | WP240185 | Pin, Bowl (Replaces: 4162028) |
|
$ 4.50 | |||||
| 20 | W10861883 | Screw (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 21 | WP4162403 | Screw (Replaces: 240912) |
|
$ 5.38 | |||||
| 22 | WP4159193 | Screw (Replaces: 3400024) |
|
$ 5.07 | |||||
| 24 | 3182904 | Screw |
|
- |
