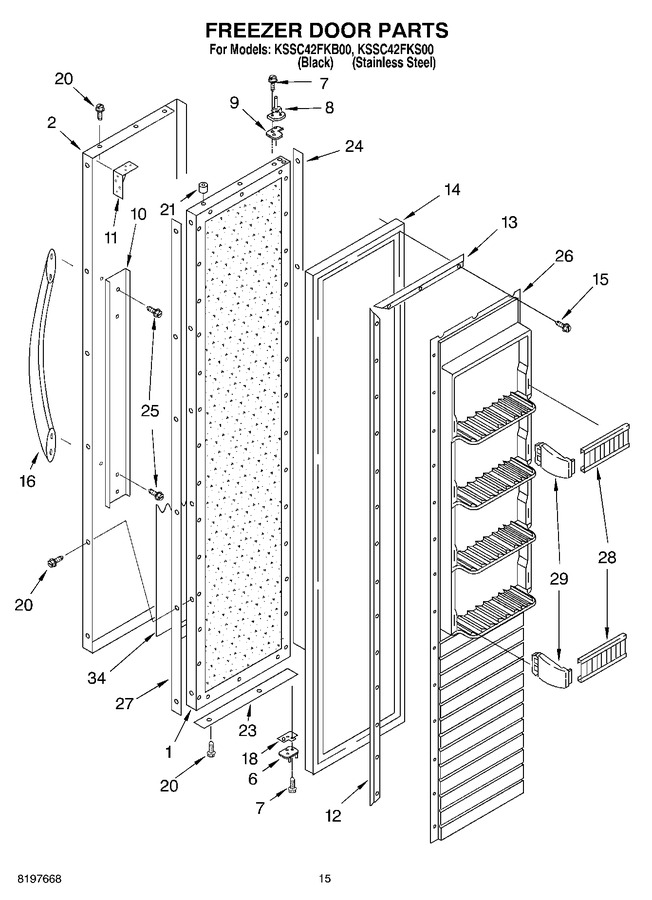

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2215976 | Freezer Door Panel (includes Insulation) |
|
- | |||||
| 2 | 2006775 | Skin, Door (stainless Steel) |
|
- | |||||
| 2 | 2209100B | Skin, Door (black) |
|
- | |||||
| 6 | 2220810 | Hinge, Bottom |
|
- | |||||
| 7 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 7.77 | ||||
| 8 | 2220922 | Hinge, Top |
|
- | |||||
| 9 | 2004520 | Spacer-door, Top |
|
- | |||||
| 10 | 2209202 | Plate, Door Handle |
|
- | |||||
| 11 | 2004447 | Brace, Door Corner |
|
- | |||||
| 12 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 13 | 1112540 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 14 | 2188496A | Door Gasket, Magnetic (Replaces: 2188496) |
|
$ 314.46 | |||||
| 15 | W11624204 | Screw (34) (Replaces: 486194) |
|
$ 13.25 | |||||
| 16 | 2005290 | Handle, Door (stainless Steel) |
|
$ 130.36 | |||||
| 16 | 2209095B | Handle, Door (black) |
|
- | |||||
| 18 | 2004549 | Door, Spacer |
|
- | |||||
| 20 | WP8281250 | Screw Stainless Steel (Replaces: 8281250) |
|
$ 10.28 | |||||
| 20 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 7.32 | ||||
| 21 | 2005433 | Spacer, Top |
|
$ 21.00 | |||||
| 23 | 2004932 | Spacer, Door Bottom |
|
- | |||||
| 24 | 2005030 | Spacer, Hinge Side |
|
- | |||||
| 25 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 7.47 | ||||
| 26 | 2209031 | Panel, Interior Door |
|
- | |||||
| 27 | 2221012 | Spacer, Handle Side |
|
- | |||||
| 28 | 2188515 | Shelf Bin |
|
- | |||||
| 29 | 2208954 | Trim, Endcap (left Side) |
|
$ 5.84 | |||||
| 29 | 2209134 | Trim, End Cap (right Side) |
|
$ 10.05 | |||||
| 34 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 34 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 34 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 34 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 34 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 34 | 2005325 | Filler, Door |
|
- | |||||
| 34 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 34 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 |
