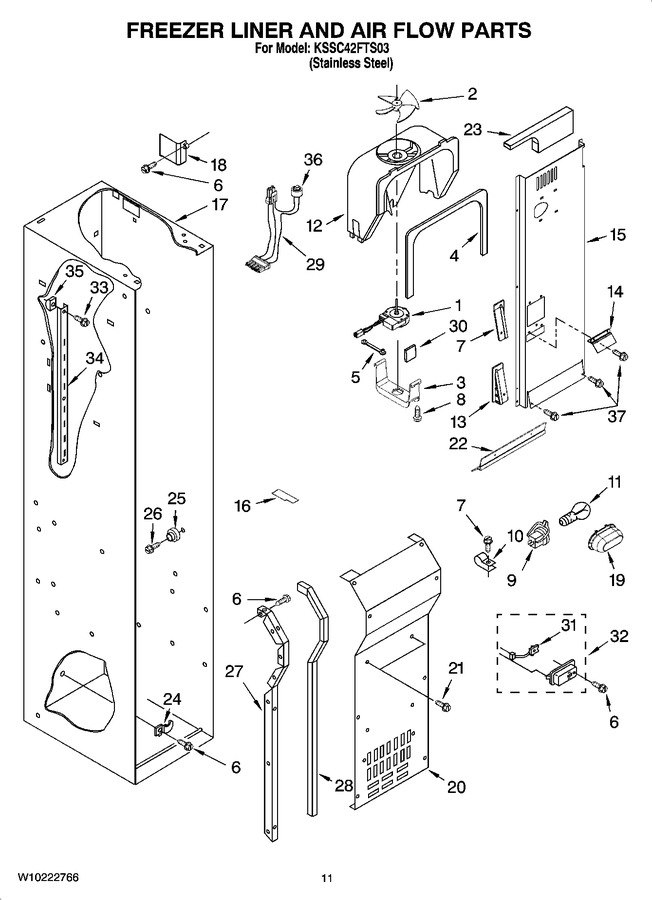

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259385 | Fan Motor |
|
$ 84.74 | |||||
| 2 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 3 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 159.27 | |||||
| 4 | WP2302817 | Gasket, Cover (Replaces: 2302817) |
|
$ 101.04 | |||||
| 5 | W11669856 | Grommet (Replaces: 2223986) |
|
Immediately | $ 15.93 | ||||
| 6 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 7 | 2259464 | Wedge, Air Duct |
|
$ 95.38 | |||||
| 8 | WP489128 | Screw, Ground (Replaces: 488500) |
|
$ 11.40 | |||||
| 9 | WPW10191429 | Socket, Light (2) (Replaces: 2223857) |
|
$ 8.80 | |||||
| 10 | 488937 | Clamp, Nylon |
|
- | |||||
| 11 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 12 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 117.57 | ||||
| 13 | 2259465 | Wedge, Air Duct |
|
- | |||||
| 14 | 2266801 | Deflector, Air |
|
- | |||||
| 15 | 2307777 | Air Duct |
|
$ 262.63 | |||||
| 16 | 2209066 | Block, Fan Scroll (left) |
|
- | |||||
| 16 | 2209480 | Block, Fan Scroll (right) |
|
- | |||||
| 18 | 2259025 | Cover, Air Outlet |
|
$ 92.36 | |||||
| 19 | 2307751 | Light Shield |
|
$ 17.27 | |||||
| 20 | W10158003 | Cover, Evaporator |
|
- | |||||
| 21 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 22 | 2302850 | Support, Air Duct |
|
- | |||||
| 23 | 2309283 | Deflector, Air Duct |
|
- | |||||
| 24 | 1112260 | Support,evaporator |
|
- | |||||
| 25 | WP2196483 | Shelf, Stud (20) (Replaces: 2196483) |
|
$ 10.87 | |||||
| 26 | W10191952 | Screw |
|
$ 5.65 | |||||
| 27 | 2221107 | Evaporator, Cover Rail (left Side) |
|
- | |||||
| 27 | 2259355 | Evaporator, Cover Rail (right Side) |
|
$ 126.54 | |||||
| 28 | 2220904 | Gasket (2) Evaporator Cover |
|
$ 23.55 | |||||
| 29 | W10139189 | Harness, Evap Fan (includes Item 36) |
|
$ 168.77 | |||||
| 30 | W11553819 | Insulation (4) (Replaces: 2220241) |
|
Immediately | $ 14.77 | ||||
| 31 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 32 | WP2317844 | Thermistor Assy (Replaces: 2317844) |
|
$ 11.38 | |||||
| 33 | 2006475 | Screw, |
|
- | |||||
| 34 | WP2259032 | Ladder, Shelf (Replaces: 2259032) |
|
$ 81.02 | |||||
| 35 | 2259445 | Support, Screw |
|
- | |||||
| 36 | WPW10160570 | Defrost, Bi-metal (Replaces: W10160570) |
|
Immediately | $ 138.98 | ||||
| 37 | WPW10142283 | Screw (Replaces: 8281185) |
|
$ 10.33 |
