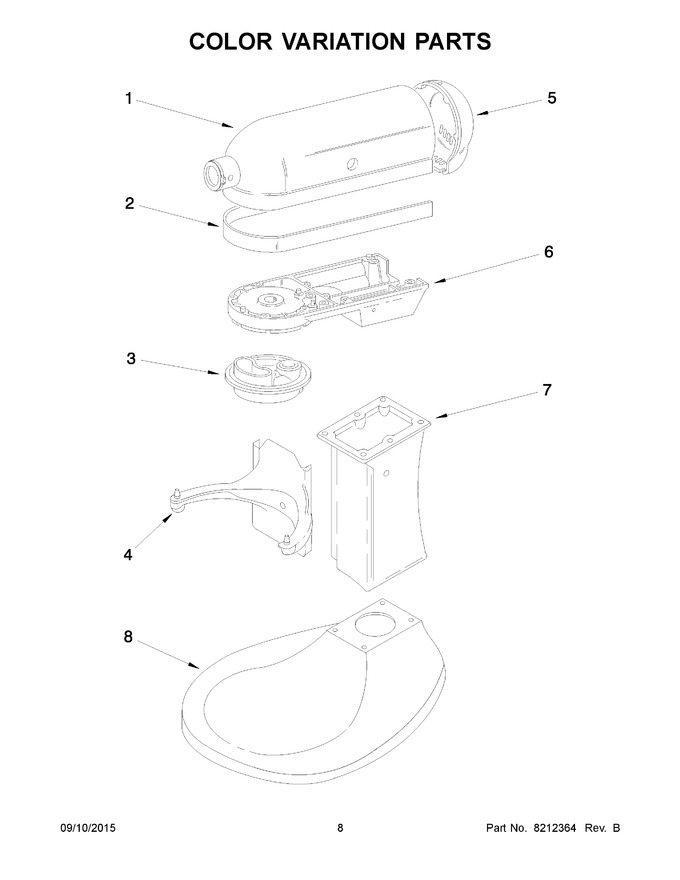

05 - Color Variation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11672793 | Motor Housing (white) (Replaces: 240291-1) |
|
$ 113.22 | |||||
| 2 | W10190238 | Trim Band (black) (Replaces: 9704633) |
|
- | |||||
| 3 | WP240286-1 | Planetary (white) (Replaces: 240286-1) |
|
Immediately | $ 25.99 | ||||
| 4 | 3179300 | Bowl Support & Pins (white) |
|
$ 66.43 | |||||
| 5 | WP240253-1 | End Cover (white) (Replaces: 240253-1) |
|
$ 21.47 | |||||
| 6 | 240354-3 | Lower Gearcase (white) |
|
$ 49.32 | |||||
| 7 | 240148-4 | Column (white) |
|
- | |||||
| 8 | 3179280 | Base & Foot Assembly (white) |
|
- |
