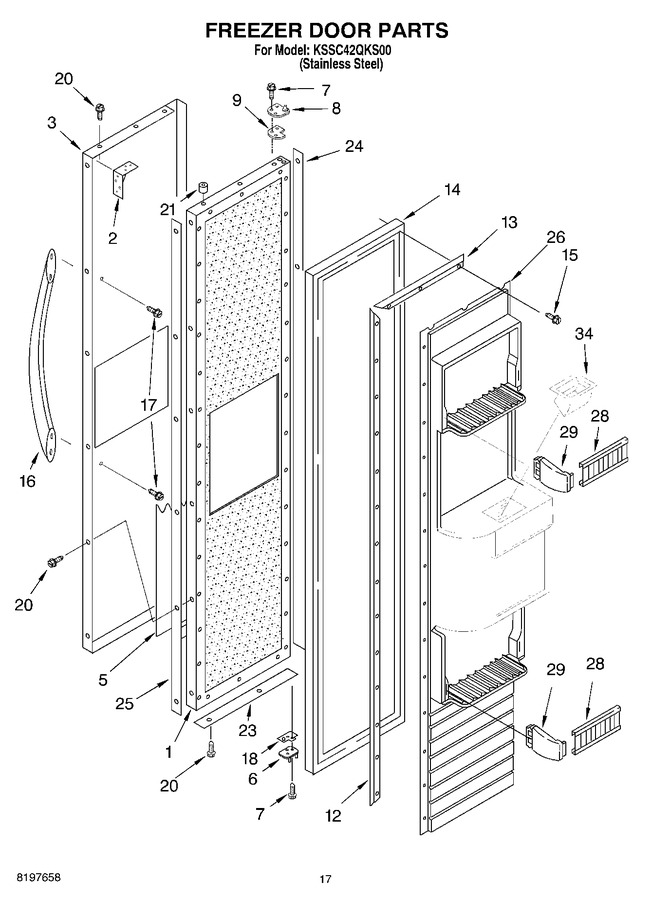

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215658B		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	2004447		Door Brace, Corner		Appelez-nous	-
3	2215588		Door Skin		Appelez-nous	-
5	2215696		Filler, Door		Appelez-nous	-
6	2220810		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	2220922		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door, Top		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112540		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188496A		Door Gasket, Magnetic   (Replaces: 2188496)				$ 349.40
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.72
16	2005290		Handle, Door				$ 130.36
17	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
18	2004549		Door, Spacer		Appelez-nous	-
20	WP8281250		Screw   (Replaces: 8281250)				$ 11.42
21	2005433		Spacer, Door (top)				$ 23.33
23	2221035		Spacer, Door (bottom)		Appelez-nous	-
24	2005030		Spacer, Door Hinge Side		Appelez-nous	-
25	2221012		Spacer, Door (handle Side)		Appelez-nous	-
26	2209027		Panel, Interior Door		Appelez-nous	-
28	2188515		Trim, Shelf (2)		Appelez-nous	-
29	2208954		Trim, Endcap (left Side)				$ 5.84
29	2209134		Trim, End Cap (right Side)				$ 10.05
34	2208909		Ice Chute		Appelez-nous	-
