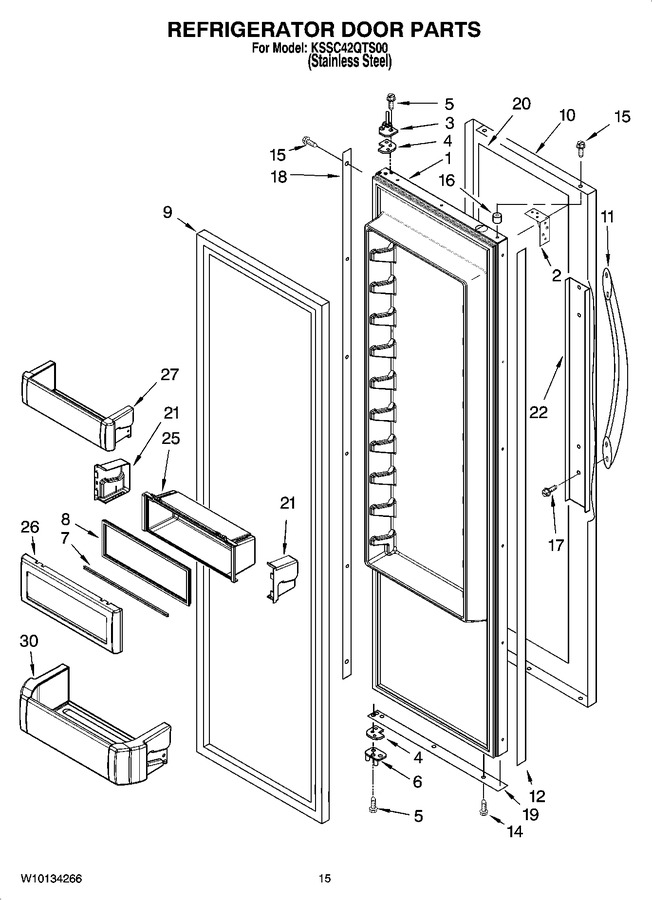

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2252330 Refrigerator Door Panel (includes Item 9) Appelez-nous -
2 2258951 Brace, Door-corner Special Order $ 33.35

3 W11724512 Hinge Assembly, Top   (Replaces: 2266854) Special Order $ 312.50

4 W11673500 Spacer-door, Top & Bottom   (Replaces: 2316804) In-Stock Immediately $ 108.07

5 W11474472 Screw   (Replaces: 489282) In-Stock Immediately $ 8.63

6 2302878 Hinge Assembly, Bottom In-Stock Immediately $ 91.01

7 W11448696 Rail, Lid   (Replaces: 2222796) Special Order $ 153.99

8 W11448696 Gaasket, Utility Bin   (Replaces: 2222982) Special Order $ 153.99

9 WP2266902 Door Gasket, Magnetic   (Replaces: 2222811) Special Order $ 330.30

10 2307753 Skin, Door (stainless Steel) Appelez-nous -
11 WP2316868 Handle, Door (stainless Steel)   (Replaces: 2316868) In-Stock Immediately $ 281.43

12 2309060 Spacer, Door-skin (handle Side) (for Stainless Steel Model) Appelez-nous -
14 W10759522 Screw   (Replaces: 488568) Special Order $ 8.24

15 WP8281250 Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250) Special Order $ 11.42

16 2005433 Spacer, Door-skin (top) Special Order $ 23.33

17 WP308544 Screw, Handle   (Replaces: 308544) In-Stock Immediately $ 8.30

18 2005030 Spacer, Door-skin (hinge Side) Appelez-nous -
19 2004934 Spacer, Door-skin (bottom) Appelez-nous -
20 2005326 Filler, Door Appelez-nous -
21 WPW10323173 End Cap (left Side)   (Replaces: 2222920) Special Order $ 8.60

21 WPW10323172 End Cap (right Side)   (Replaces: 2222919) Special Order $ 8.60

22 2306398 Plate, Door-handle Appelez-nous -
25 W10323042 Bin, Utility (center)   (Replaces: 2222922) Special Order $ 223.93

26 W11553221 Door, Utility Bin   (Replaces: 2257616) In-Stock Immediately $ 69.64

27 W10323599 Bin, Door (3)   (Replaces: 2222773) Special Order $ 146.61

30 W10323747 Bin, Door   (Replaces: 2222770) Special Order $ 145.36


    View Diagram in Separate Window     Print Icon   Print Part List
