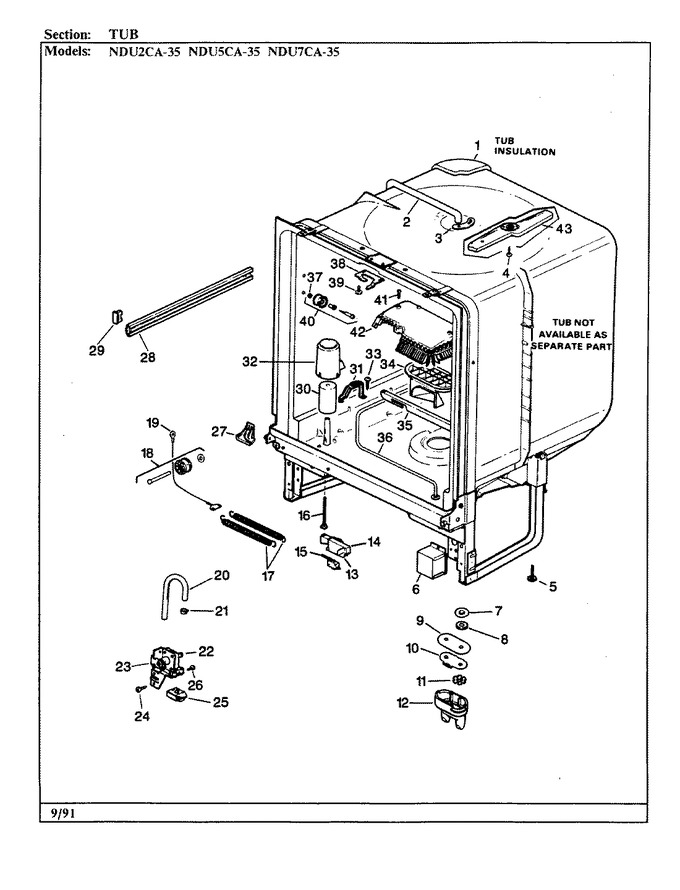

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2585-0001		Insulation		Appelez-nous	-
2	2530-0014		Hose, Power Shower		Appelez-nous	-
3	WW03F00159		Nut-strip   (Replaces: 3120-0002)			Immediately	$ 170.53
4	3005-0030		Screw		Appelez-nous	-
5	2650-0002		Screw, Leveling		Appelez-nous	-
6	2275-0002		Cover, Junction Box		Appelez-nous	-
7	3280-0009		Washer		Appelez-nous	-
8	2480-0003		Grommet		Appelez-nous	-
9	2590-0005		Insulator		Appelez-nous	-
10	2145-0025		Barrier, Bracket		Appelez-nous	-
11	2735-0009		Nut		Appelez-nous	-
12	2080-0002		Barrier, Element		Appelez-nous	-
13	2275-0020		Cover		Appelez-nous	-
14	2145-0026		Bracket, Switch		Appelez-nous	-
15	3135-0005		Switch, Float		Appelez-nous	-
16	3085-0001		Stem, Float		Appelez-nous	-
17	3070-0006		Door,spring (blue)		Appelez-nous	-
18	2955-0010		Pulley & Shaft		Appelez-nous	-
19	Y03000108		Cable & Eyelet Assy				$ 41.91
20	2530-0004		Hose		Appelez-nous	-
21	2235-0004		Clamp, Fill Hose		Appelez-nous	-
22	WD15X93		Valve, Water   (Replaces: 3255-0009)				$ 64.56
23	2250-0002		Solenoid, Assembly		Appelez-nous	-
24	WP3351614		Screw   (Replaces: 3005-0046)			Immediately	$ 6.57
25	2590-0004		Insulator		Appelez-nous	-
26	WP489483		Screw   (Replaces: 3005-0076)				$ 10.27
27	2045-0006		Baffle, Tub (lt)		Appelez-nous	-
27	2045-0005		Baffle, Tub (rt)		Appelez-nous	-
28	3045-0002		Slide, Rack		Appelez-nous	-
29	2355-0002		End Cap, Rack Slide		Appelez-nous	-
30	2410-0002		Float, Flood		Appelez-nous	-
31	03000078		Support, Heater (front)		Appelez-nous	-
32	2275-0009		Float, Dome		Appelez-nous	-
33	3005-0115		Screw		Appelez-nous	-
34	2205-0003		Cap, Sump		Appelez-nous	-
35	03000079		Support, Heater (rear)		Appelez-nous	-
36	2350-0002		Element, Heater		Appelez-nous	-
37	3280-0003		Washer		Appelez-nous	-
38	2645-0005		Keeper-latch		Appelez-nous	-
39	03000001		Screw		Appelez-nous	-
40	2955-0009		Roller & Stud Assembly		Appelez-nous	-
41	3005-0034		Screw		Appelez-nous	-
42	2275-0008		Cover, Sump Inlet		Appelez-nous	-
43	2020-0003		Arm, Spray		Appelez-nous	-
